2015 Gulfstream G450
Price: Call for Price
- Serial Number: 4316
- Tail Number: N432BF
- Hours: 2,521
- Cycles: 1,092
Engines and APU on JSSI
Exterior Striping December 2024
Synthetic Vision
Engine Mid-Life Inspections Completed December 2024
88 Parameter FDR
Direct TV
ATG-5000/Swift BroadBand WiFi
Exterior Striping December 2024
Synthetic Vision
Engine Mid-Life Inspections Completed December 2024
88 Parameter FDR
Direct TV
ATG-5000/Swift BroadBand WiFi
Offered by:
Cleveland, OH
Airframe
Total Hours:
2,521
Total Cycles:
1,092
Entry Into Service Date:
June, 2015
Home Base:
KTUL
Maintenance Tracking:
CMP
Airframe Certification:
FAR Part 91
Engines
Rolls-Royce TAY 611-8C
Engine Program Coverage:
JSSI
Engine 1
Serial Number:
85641
Hours Since New:
2,460
Cycles Since New:
1,037
Engine 2
Serial Number:
85640
Hours Since New:
2,460
Cycles Since New:
1,037
APU
Description:
Honeywell GTCP 36-150(GIV)
APU Program Coverage:
JSSI
Serial Number:
P-431
Total Time Since New:
2,064
Avionics
Maintenance Program:
HAPP and CASP
ADS-B In/Out Equipped:Yes
FANS Equipped:Yes
WAAS Equipped:Yes
SVT Equipped:Yes
CPDLC Equipped:Yes
HUD Equipped:Yes

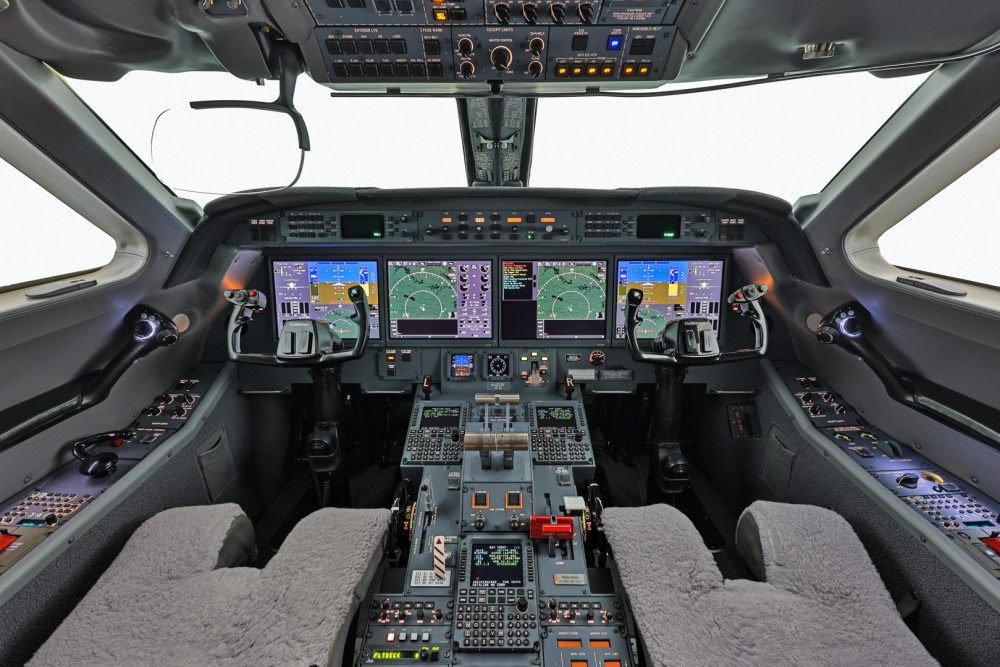

Four Honeywell DU-1310 Flat Panel Display Units
Two Honeywell DC-884 Display Controllers Honeywell
DP-884 Display Brightness Panel
Heads Up Display with Enhanced Vision Upgrade
Honeywell/Kollsman Visual Guidance System
Three Honeywell MAU-913 Modular Avionics Units
Honeywell GP-500 Flight Guidance Panel
Three Honeywell MC-850 Multifunction Control Display Units
Three Honeywell AZ-200 Air Data Modules
Honeywell WU-880 Weather Radar
Receiver/Transmitter Antenna
Two Honeywell WC-884 Weather Radar Controllers
Three Honeywell IR-500 LASEREF V Micro Inertial
Reference Units
Two Honeywell MRC-855A Modular Radio Cabinets
Honeywell MT-860 Third Navigation/Communication
Cabinet
Three Honeywell AV-900 Audio Panels
Two Honeywell RT-300 Radio Altimeters
Universal Avionics Cockpit Voice Recorder (CVR)
Two Davtron Digital Clocks
L3 EBDI-4000 Radio Magnetic Indicator (RMI)
L3 Magnetometer
L3 GH-3100 Standby Attitude/Airspeed/Altitude Indicator
L3 RT-951 Traffic Alert Collision Avoidance System
(TCAS 2000)
Two Mason Cursor Control Devices
Miltope Printer (cockpit)
Honeywell MCS 7000+ SATCOM
Aircell Cabin Telecommunications Router
Aircell Transceiver ST-4200
Sensor Systems Dual Element Antenna
XM Weather Data Receiver
Two Honeywell DC-884 Display Controllers Honeywell
DP-884 Display Brightness Panel
Heads Up Display with Enhanced Vision Upgrade
Honeywell/Kollsman Visual Guidance System
Three Honeywell MAU-913 Modular Avionics Units
Honeywell GP-500 Flight Guidance Panel
Three Honeywell MC-850 Multifunction Control Display Units
Three Honeywell AZ-200 Air Data Modules
Honeywell WU-880 Weather Radar
Receiver/Transmitter Antenna
Two Honeywell WC-884 Weather Radar Controllers
Three Honeywell IR-500 LASEREF V Micro Inertial
Reference Units
Two Honeywell MRC-855A Modular Radio Cabinets
Honeywell MT-860 Third Navigation/Communication
Cabinet
Three Honeywell AV-900 Audio Panels
Two Honeywell RT-300 Radio Altimeters
Universal Avionics Cockpit Voice Recorder (CVR)
Two Davtron Digital Clocks
L3 EBDI-4000 Radio Magnetic Indicator (RMI)
L3 Magnetometer
L3 GH-3100 Standby Attitude/Airspeed/Altitude Indicator
L3 RT-951 Traffic Alert Collision Avoidance System
(TCAS 2000)
Two Mason Cursor Control Devices
Miltope Printer (cockpit)
Honeywell MCS 7000+ SATCOM
Aircell Cabin Telecommunications Router
Aircell Transceiver ST-4200
Sensor Systems Dual Element Antenna
XM Weather Data Receiver
Navigation and Compliance
FANS Equipped:Yes
CPDLC Equipped:Yes
ADS-B Equipped:Yes
ADS-C Equipped:Yes
RAAS Equipped:Yes
Additional Equipment/Features
Planeview Avionics Enhancement ASC099A-C
External Camera System
Enhanced Vision System Processor Upgrade 949002
Lightning Sensor System ASC021A
New Injection Molded Electronic Window Shades 2024
XM Weather ASC060A
Talon LED Wingtip / Flood / Taxi / Landing Lights
Micro Quick Access Recorder (QAR)
Digital Flight Data Recorder (DFDR) 88 Parameter ASC001D
LED Nav & Anticollision Lights ASC102
Max Landing Gross Weight 58,500 lbs.ASC007E
LED Cargo & Aft Svc. Comp. Lights ASC101
Runway Awareness Advisory System (RAAS) ASC040A
Synthetic Vision – Prim. Ft. Display ASC037B
Wing to Body Fairings Av-Dec Gaskets ASC 109
8.8 KHZ Airframe ULB ASC 106
Electric Food Chiller
Aerolux Espresso Machine
Electric Lumbar on Two (2) Zone 1 VIP Forward Facing Seats
Electric Pocket Doors
Future Air Navigation System (FANS & CPDLC)
ADS-B In / Out & ADS-C
Runway Awareness Advisory System – (RAAS)
Wide Area Augmentation System (WAAS)
External Camera System
Enhanced Vision System Processor Upgrade 949002
Lightning Sensor System ASC021A
New Injection Molded Electronic Window Shades 2024
XM Weather ASC060A
Talon LED Wingtip / Flood / Taxi / Landing Lights
Micro Quick Access Recorder (QAR)
Digital Flight Data Recorder (DFDR) 88 Parameter ASC001D
LED Nav & Anticollision Lights ASC102
Max Landing Gross Weight 58,500 lbs.ASC007E
LED Cargo & Aft Svc. Comp. Lights ASC101
Runway Awareness Advisory System (RAAS) ASC040A
Synthetic Vision – Prim. Ft. Display ASC037B
Wing to Body Fairings Av-Dec Gaskets ASC 109
8.8 KHZ Airframe ULB ASC 106
Electric Food Chiller
Aerolux Espresso Machine
Electric Lumbar on Two (2) Zone 1 VIP Forward Facing Seats
Electric Pocket Doors
Future Air Navigation System (FANS & CPDLC)
ADS-B In / Out & ADS-C
Runway Awareness Advisory System – (RAAS)
Wide Area Augmentation System (WAAS)
Interior
Number Of Passengers:
14

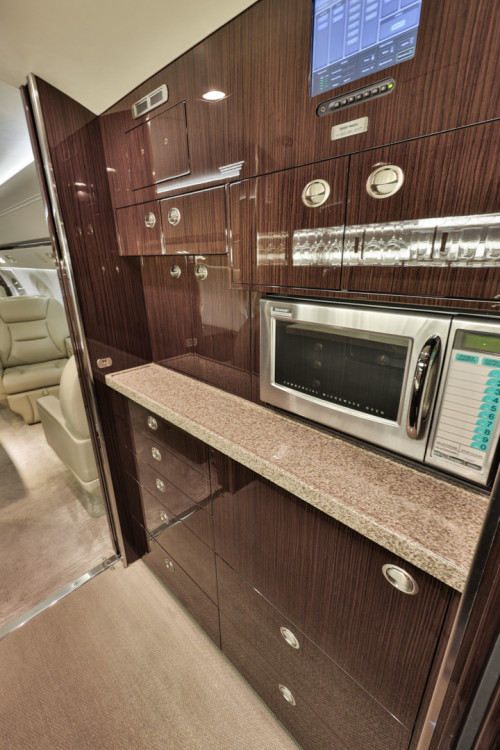

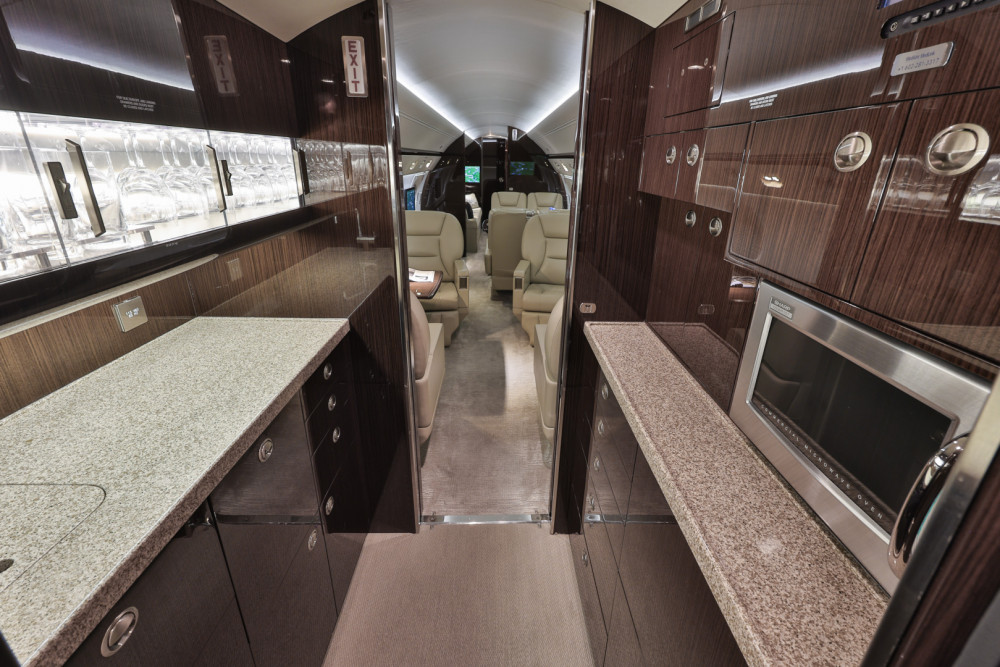

Forward Galley: Yes
Forward Lavatory: Yes
Aft Lavatory: Yes
Interior Last Refurbished:
2015

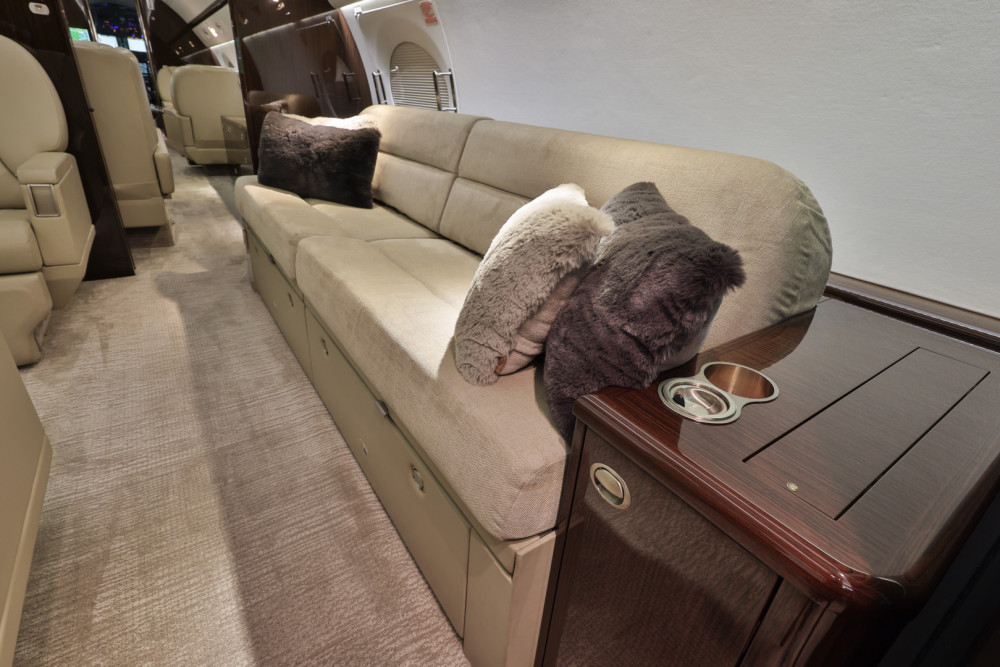

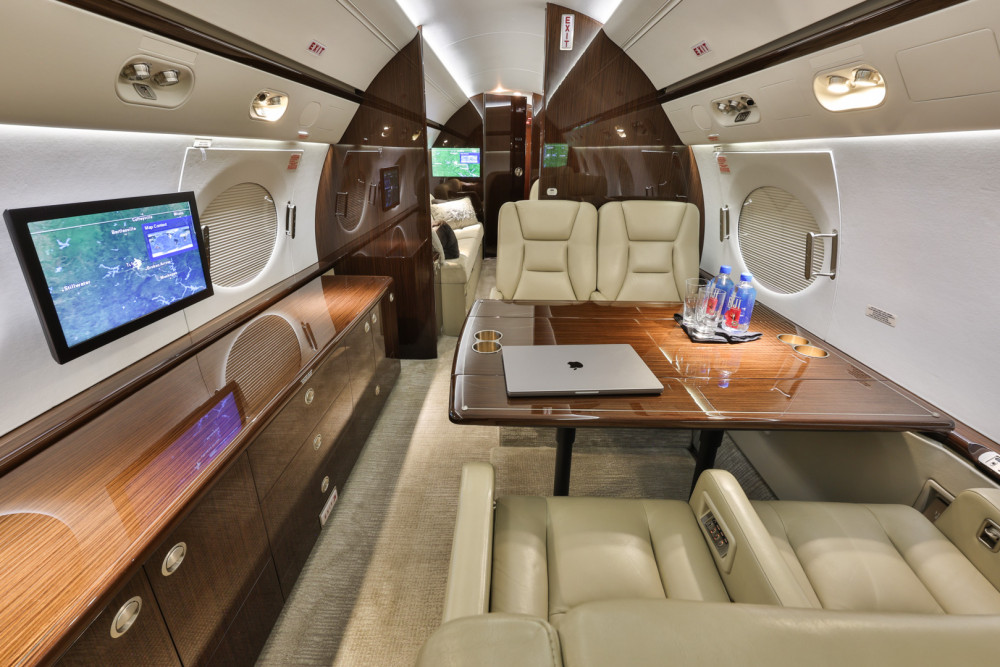

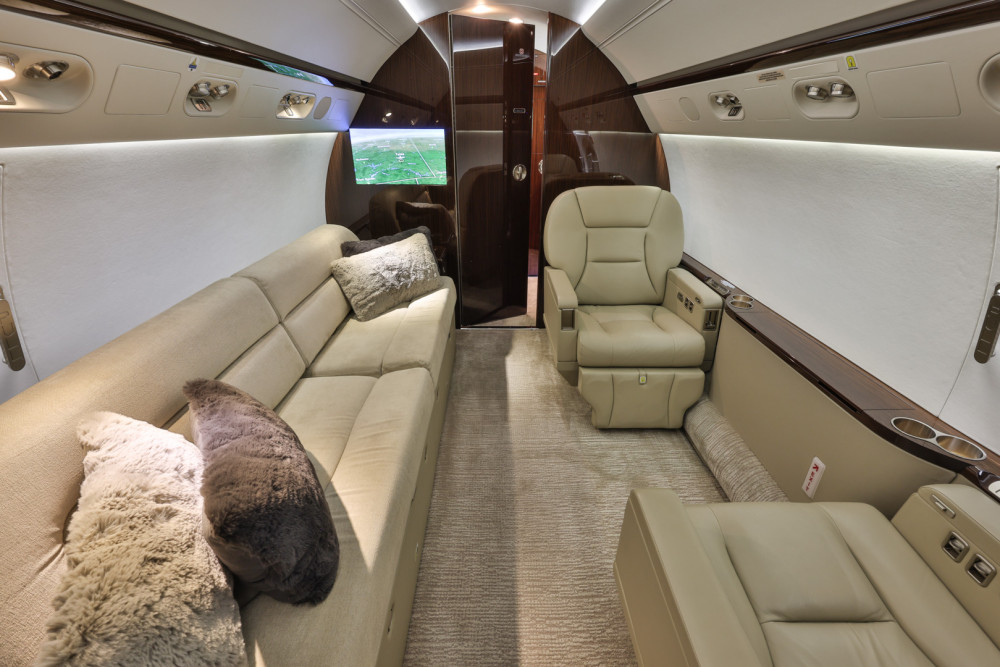

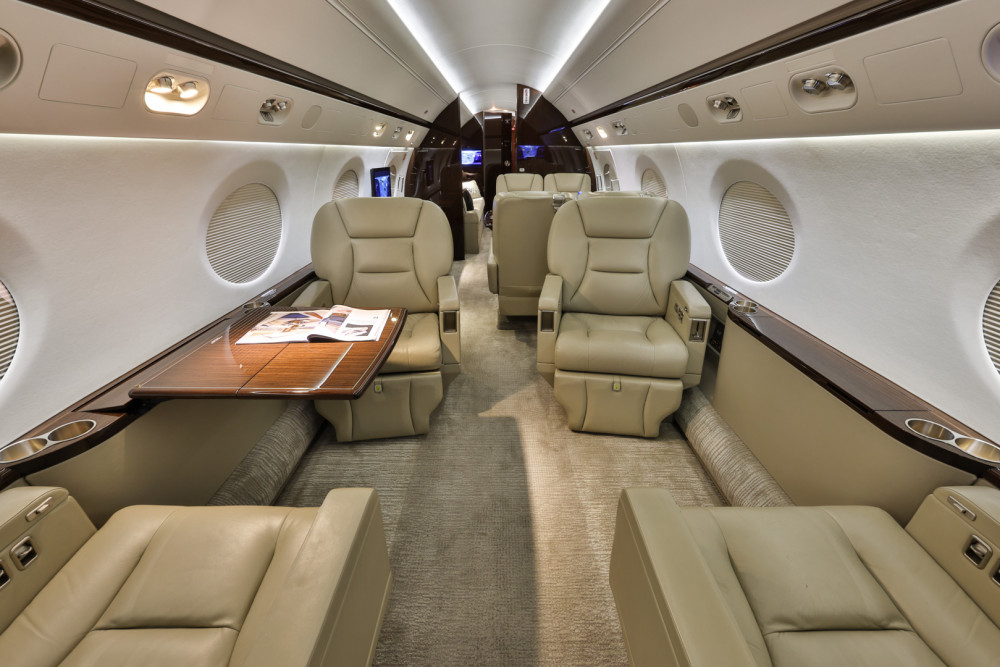

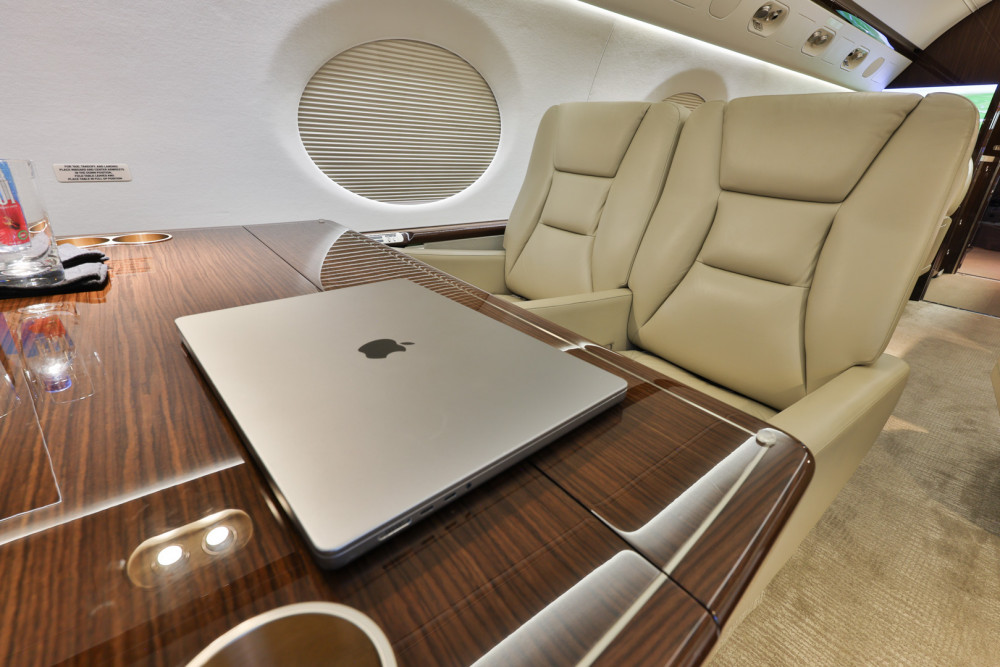

14- Passenger-Forward Galley, with forward and aft Full lav. Forward double club seating, mid cabin conference/dining

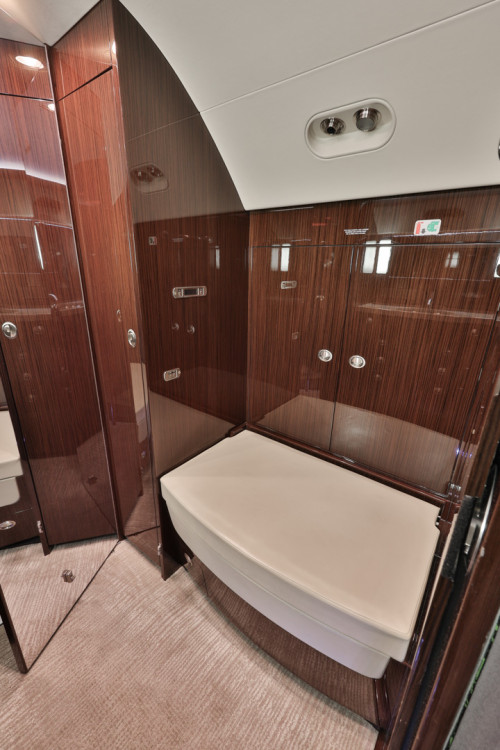

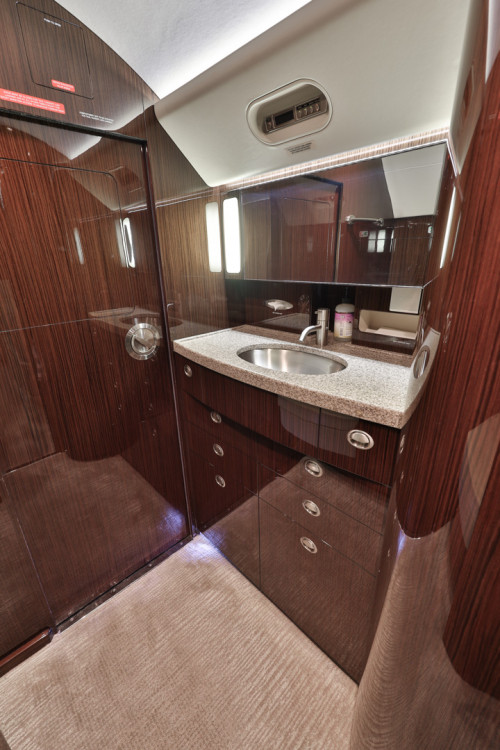

table opposite credenza, aft cabin single club seating opposite divan. Full Aft Lav with flushing toilet, vanity,
storage and sink. Aft cabin accessible baggage compartment.
table opposite credenza, aft cabin single club seating opposite divan. Full Aft Lav with flushing toilet, vanity,
storage and sink. Aft cabin accessible baggage compartment.
Entertainment
Display TV Monitors:
3
Airshow System:
4000
Cabin Management System:
Rockwell Collins
High Speed Internet:
ATG-4000
Rockwell Collins Cabin Management System
Airshow 4000 Flight Information System
SATCOM Direct Router (SDR) with 4G Cell Service
HD-SDI Wiring to provide HD Video
GoGo ATG 4000 Wi-Fi
Swift Broadband Global Internet
Two (2) HDMI Ports
iDevice Docking Stations
One (1) 22” Rosen HD Monitor
Two (2) 24” Rosen HD Bulkhead Monitors
9” LCD Monitors in Each Single Seat Arm Rest
Honeywell AIS 2000 with Dual Direct TV Receivers and a
Single International Receiver
Wireless Two-Way Remote-Control System to Allow iPhones
& iPads to Function as Remotes for CMS
Four (4) Node Audio Video Distribution System (AVDS)
integrated with CMS
Airshow 4000 Flight Information System
SATCOM Direct Router (SDR) with 4G Cell Service
HD-SDI Wiring to provide HD Video
GoGo ATG 4000 Wi-Fi
Swift Broadband Global Internet
Two (2) HDMI Ports
iDevice Docking Stations
One (1) 22” Rosen HD Monitor
Two (2) 24” Rosen HD Bulkhead Monitors
9” LCD Monitors in Each Single Seat Arm Rest
Honeywell AIS 2000 with Dual Direct TV Receivers and a
Single International Receiver
Wireless Two-Way Remote-Control System to Allow iPhones
& iPads to Function as Remotes for CMS
Four (4) Node Audio Video Distribution System (AVDS)
integrated with CMS
Exterior
Base Paint Colors:
White
Stripe Colors:
Black and Gray
Last Painted:
2024

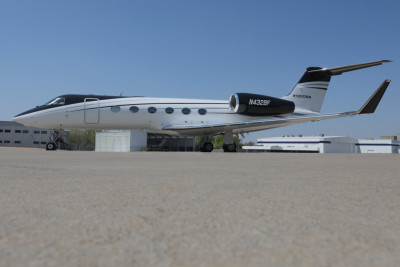

Overall White with Gray and Black striping and accent. Base White Painted 2023 and striping Painted 2024 By West Star.
