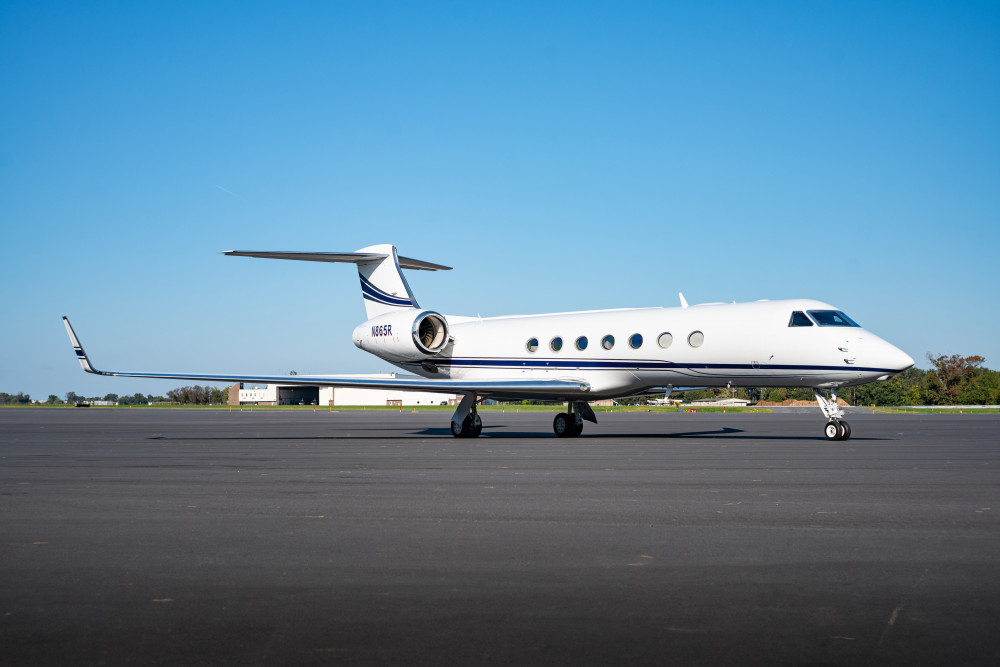

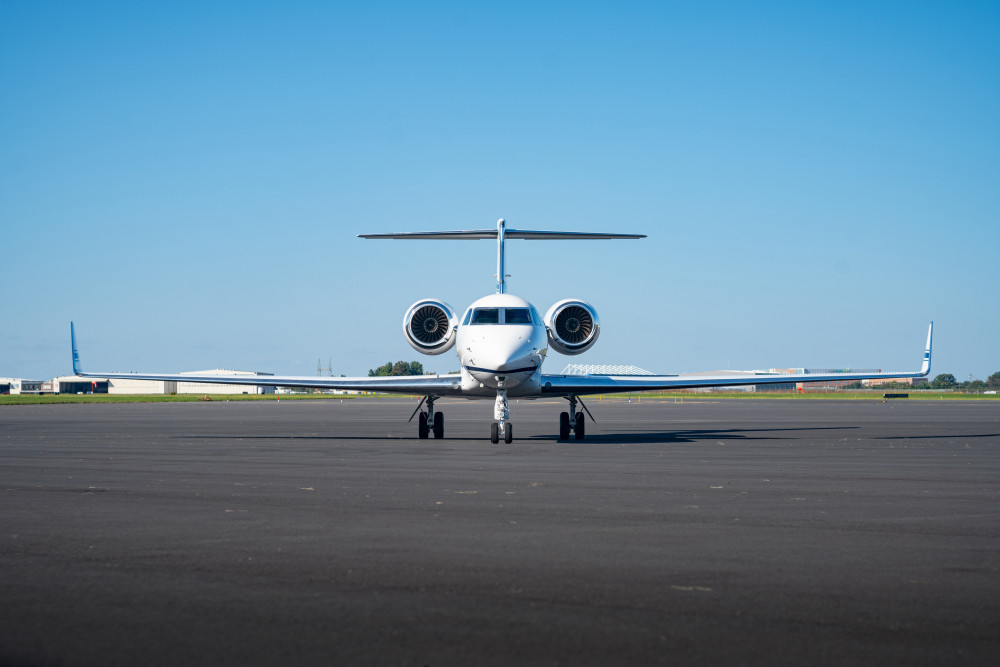

2009 Gulfstream G550
Price: $17,900,000
- Serial Number: 5211
- Tail Number: N865R
- Hours: 6,610
- Cycles: 2,238
- 14 Pax Forward Galley with Crew Rest.
- Engines Enrolled on Rolls-Royce CorporateCare.
- APU Enrolled on MSP.
- Fresh 12-24-48-96-144-192 Month Inspections at Gulfstream (Dec 2024).
- Honeywell Ka-Band Hi-Speed Internet Service.
- 88 Parameter DFDR (ASC 002C) Upgrade.
- FANS 1/A+ / CPDLC, ADS-B Out v2, TCAS 7.1.
- Synthetic Vision (ASC 061).
- Aircraft is Hangared at Trenton–Mercer Airport (TTN), Trenton, NJ, USA.
- Engines Enrolled on Rolls-Royce CorporateCare.
- APU Enrolled on MSP.
- Fresh 12-24-48-96-144-192 Month Inspections at Gulfstream (Dec 2024).
- Honeywell Ka-Band Hi-Speed Internet Service.
- 88 Parameter DFDR (ASC 002C) Upgrade.
- FANS 1/A+ / CPDLC, ADS-B Out v2, TCAS 7.1.
- Synthetic Vision (ASC 061).
- Aircraft is Hangared at Trenton–Mercer Airport (TTN), Trenton, NJ, USA.
Airframe
Total Hours:
6,610
Total Cycles:
2,238
Certificate of Airworthiness: September 9, 2008
Entry Into Service: January 30, 2009
Aircraft is Hangared at Trenton–Mercer Airport (TTN), Trenton, NJ, USA.
Entry Into Service: January 30, 2009
Aircraft is Hangared at Trenton–Mercer Airport (TTN), Trenton, NJ, USA.

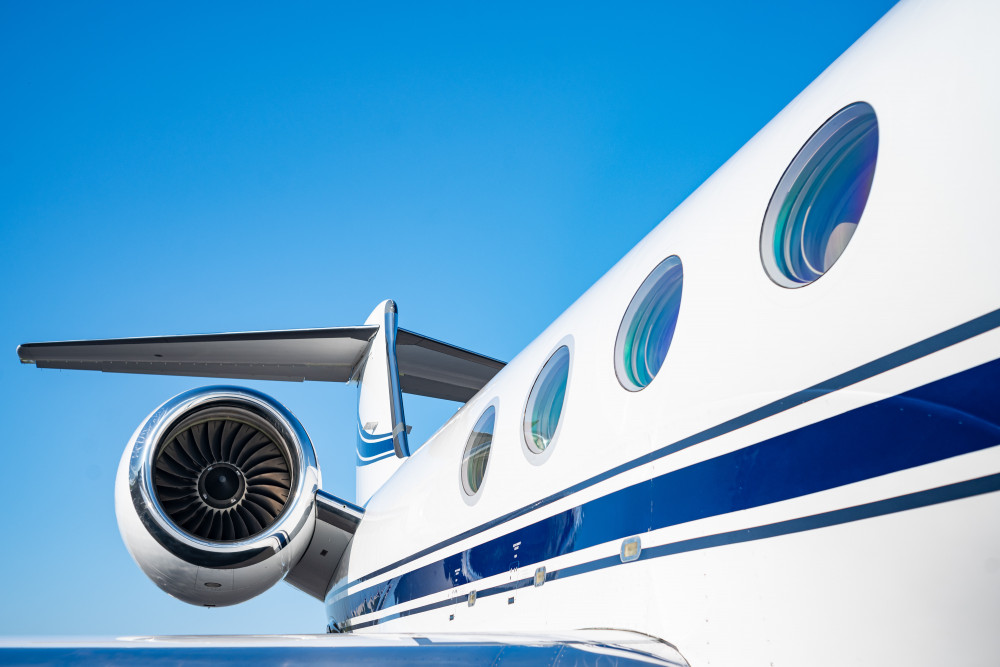

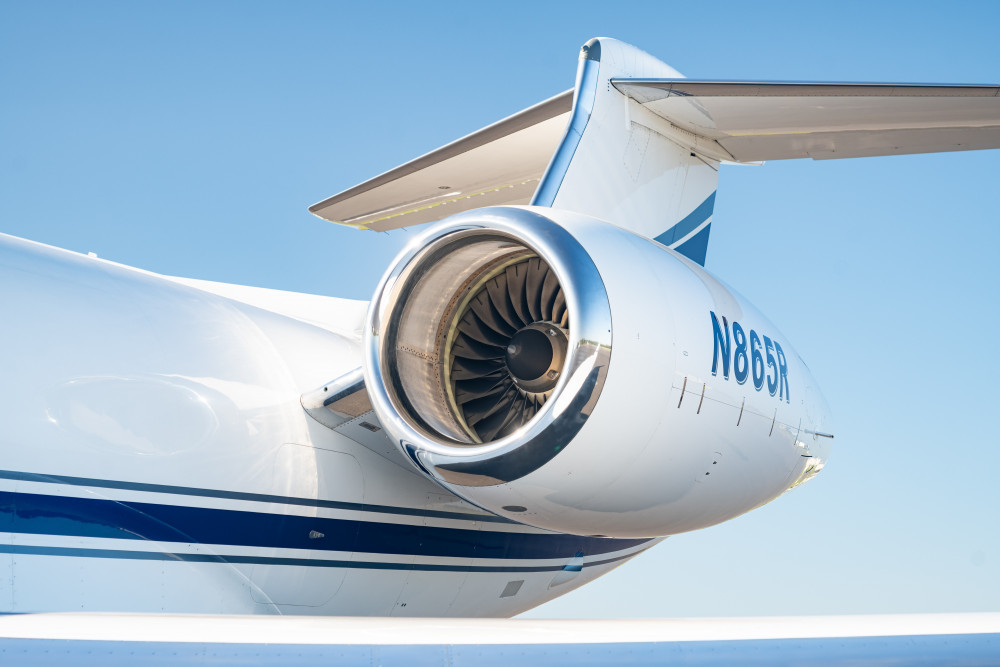

Engines
Rolls-Royce BR700-710C4-11 (G550)
Mid-Life c/w December 2016 at 4,167 Hrs.
Overhaul Due at 8,000 Hrs.
Mid-Life c/w December 2016 at 4,167 Hrs.
Overhaul Due at 8,000 Hrs.
Engine Program Coverage:
Rolls Royce Corporate Care (RRCC)
Engine 1
Serial Number:
15525
Hours Since New:
6,486
Cycles Since New:
2,197
Engine 2
Serial Number:
15526
Hours Since New:
6,486
Cycles Since New:
2,197
APU
Description:
Honeywell RE220 (G550)
APU Program Coverage:
MSP
Serial Number:
P-539
Total Time Since New:
3,447

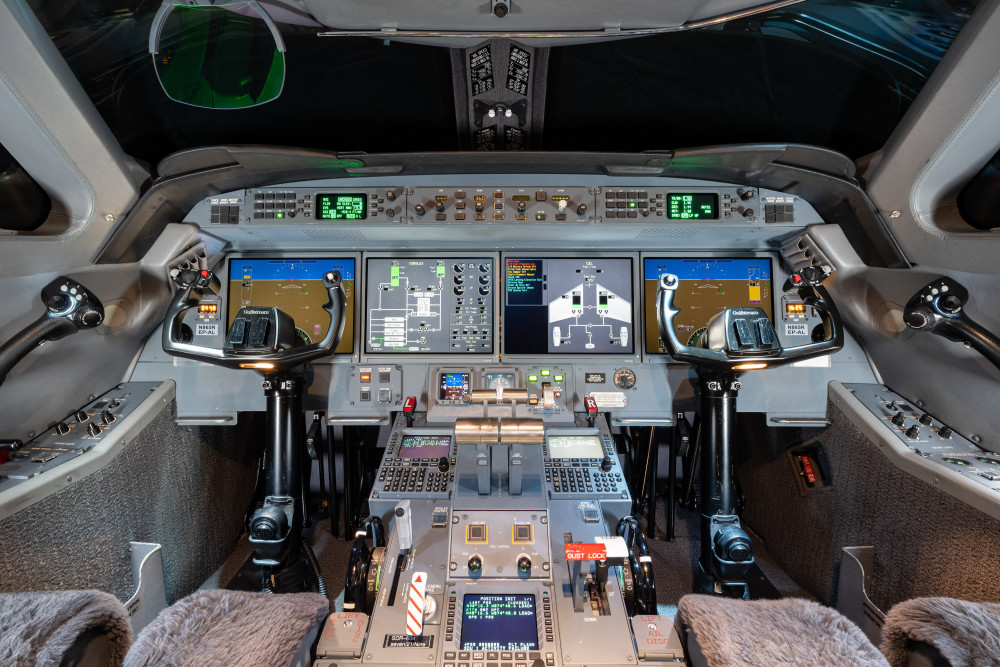

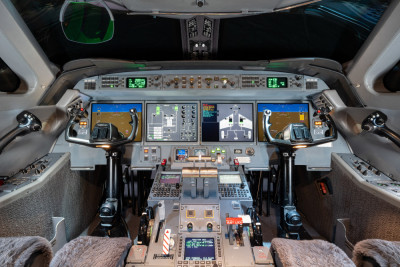

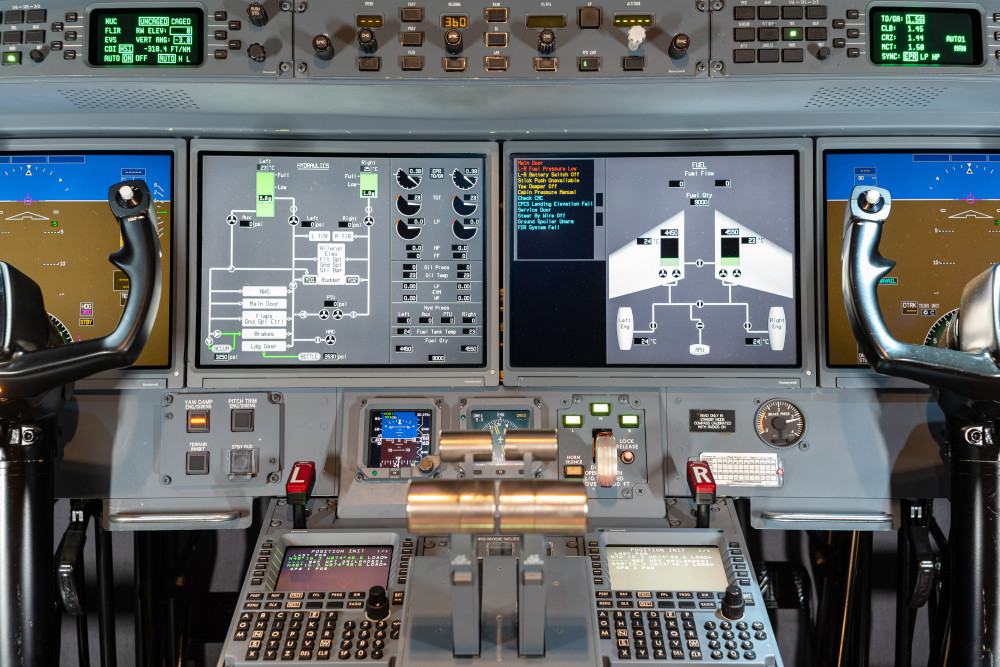

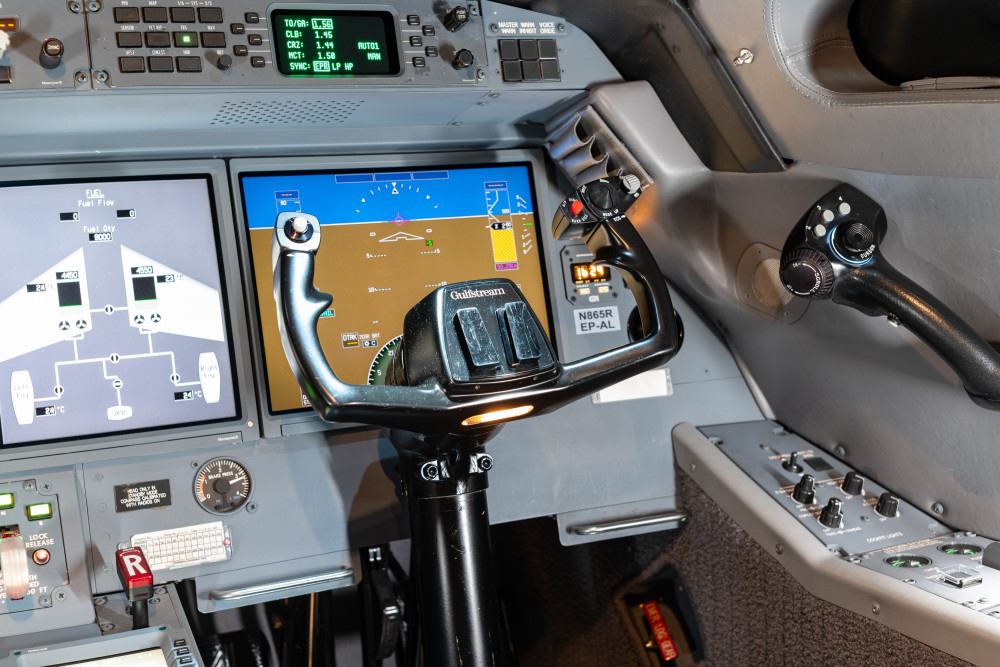

Avionics
AIR DATA COMPUTER: Triple Honeywell AZ-200 Air Data Modules
AUTOMATIC DIRECTION FINDER: Dual Honeywell DF-855 ADF
AUTO THROTTLES: Honeywell Auto Throttle System
AUTOPILOT / FLIGHT DIRECTOR: Honeywell GP-500 System
COCKPIT VOICE RECORDER: L3 Cockpit Voice Recorder
COMMUNICATIONS: Dual Honeywell TR-865A and Third Honeywell NC-860A Comm Modules
DISTANCE MEASURING EQUIPMENT: (2) Honeywell DM-855
ELECTRONIC FLIGHT INFORMATION SYSTEMS: Honeywell Planeview – 4 Tube EFIS
EMERGENCY LOCATOR TRANSMITTER: Artex C-406N (Triple Frequency) ELT
ENHANCED VISION SYSTEM: Kollsman EVS System
FLIGHT DATA RECORDER: L3 Flight Data Recorder – 88 Parameters
FLIGHT GUIDANCE COMPUTER: Honeywell Planeview System
FLIGHT MANAGEMENT SYSTEM: Honeywell Planeview System
GLOBAL POSITIONING SYSTEM: Dual Honeywell GPS Modules
HIGH FREQUENCY RADIO: Dual Rockwell Collins HF-9034A HF Com Radios
HEADS UP DISPLAY: Honeywell VGS System with EVS
LONG RANGE NAVIGATION: Triple Honeywell Laseref VI Micro IRUs
NAVIGATION: Dual Honeywell NV-875A NAV Radios with ILS, Glide Slope, and Marker Beacons
RADIO ALTIMETER: Dual Honeywell RT-300 Radio Altimeters
SYNTHETIC VISION SYSTEM: ASC 61B
TERRAIN AWARENESS AND WARNING SYSTEM: Dual EGPWM-100 Modules
TRAFFIC COLLISION AVOIDANCE SYSTEM: TCAS 2000 with Change 7.1 (ASC 103)
TRANSPONDER: Dual Honeywell XS-858A Mode S Transponders w/ ADS-B Out v2 (DO-260B)
WEATHER RADAR: Honeywell Primus WU-880 Color Weather Radar
AUTOMATIC DIRECTION FINDER: Dual Honeywell DF-855 ADF
AUTO THROTTLES: Honeywell Auto Throttle System
AUTOPILOT / FLIGHT DIRECTOR: Honeywell GP-500 System
COCKPIT VOICE RECORDER: L3 Cockpit Voice Recorder
COMMUNICATIONS: Dual Honeywell TR-865A and Third Honeywell NC-860A Comm Modules
DISTANCE MEASURING EQUIPMENT: (2) Honeywell DM-855
ELECTRONIC FLIGHT INFORMATION SYSTEMS: Honeywell Planeview – 4 Tube EFIS
EMERGENCY LOCATOR TRANSMITTER: Artex C-406N (Triple Frequency) ELT
ENHANCED VISION SYSTEM: Kollsman EVS System
FLIGHT DATA RECORDER: L3 Flight Data Recorder – 88 Parameters
FLIGHT GUIDANCE COMPUTER: Honeywell Planeview System
FLIGHT MANAGEMENT SYSTEM: Honeywell Planeview System
GLOBAL POSITIONING SYSTEM: Dual Honeywell GPS Modules
HIGH FREQUENCY RADIO: Dual Rockwell Collins HF-9034A HF Com Radios
HEADS UP DISPLAY: Honeywell VGS System with EVS
LONG RANGE NAVIGATION: Triple Honeywell Laseref VI Micro IRUs
NAVIGATION: Dual Honeywell NV-875A NAV Radios with ILS, Glide Slope, and Marker Beacons
RADIO ALTIMETER: Dual Honeywell RT-300 Radio Altimeters
SYNTHETIC VISION SYSTEM: ASC 61B
TERRAIN AWARENESS AND WARNING SYSTEM: Dual EGPWM-100 Modules
TRAFFIC COLLISION AVOIDANCE SYSTEM: TCAS 2000 with Change 7.1 (ASC 103)
TRANSPONDER: Dual Honeywell XS-858A Mode S Transponders w/ ADS-B Out v2 (DO-260B)
WEATHER RADAR: Honeywell Primus WU-880 Color Weather Radar
Inspections
Inspection Type
Performed
Next Due
12 Mo
Performed:
July 2024
@
6,419 Hours
Next Due:
July 2025
24 Mo
Performed:
December 2024
@
6,515 Hours
Next Due:
December 2026
48 Mo
Performed:
December 2024
@
6,515 Hours
Next Due:
December 2028
72 Mo
Performed:
December 2020
@
5,490 Hours
Next Due:
January 2027
96 Mo
Performed:
December 2024
@
6,515 Hours
Next Due:
December 2032
144 Mo
Performed:
December 2024
@
6,515 Hours
Next Due:
December 2036
192 Mo
Performed:
December 2024
@
6,515 Hours
Next Due:
December 2040
Engines on Rolls Royce Corporate Care
APU Enrolled on MSP
Enrolled on Honeywell MSP Avionics & MSP Mechanical Components Coverage
Enrolled on Collins Avionics Service Program (CASP)
Maintenance Records Tracked on Gulfstream CMP
Operated & Maintained in Accordance w/ Solairus Aviation’s FAR 135 Certificate
On MSG-3 Maintenance Program
Additional Equipment/Features
Major Aircraft Service Changes, Enhancements, & Upgrades:
• ASC 002C Digital FDR System Upgrade (88 Parameters)
• ASC 008 Maximum Gross Weight 75,000 Pounds Placard
• ASC 008B Maximum Gross Weight 75,000 Pounds
• ASC 009 Max Zero Fuel Gross Weight
• ASC 049 Lightning Sensor System (LSS) Installation
• ASC 053 Comm Management FNC ARINC Direct-Datalink
• ASC 061 AM1 Synthetic Vision Primary Flight Display (SV-PFD)
• ASC 065A Runway Awareness Advisory System Installation
• ASC 071 Micro Quick Access Recorder Installation
• ASC 073A Nose Gear Uplock Hook Spring Replacement
• ASC 080/AM1-2 Modification - Wing Rear Beam – Flight Spoiler Actuator Attachment Point
• ASC 084 Enhanced Navigation
o Future Air Navigation System (FANS 1/A+) CPDLC
o Wide Area Augmentation System (WAAS) w/ LPV Approaches
o Circling Approaches
o Temperature Compensated VNAV
o Peaks Display
o Electronic Terminal Charts (Certified Paperless Flight Deck)
o New/Upgraded - 2 GPS Antennas, 2 GPS Modules, 1 CMC Module, & 3 IRUs
o Short-Range/Long-Range Navigation (SRN-LRN) Automatic Preview & Transition
• ASC 089 Stage 4 Noise Standards – Certification
• ASC 090A/AM1 Auxiliary Power Unit (APU) Enclosure – Thermal Barrier Installation
• ASC 092 Comm Management Function (CMF) - SATCOM Direct - Datalink Service Provider
• ASC 093A Aileron Cable Fairleads AT Sponson Rib – Installation
• ASC 094B Landing Gear Door Close – Restrictor
• ASC 099A Aileron and Elevator Power Disconnect - Removal
• ASC 103 TCAS 7.1 Installation
• ASC 104 Aileron Cable Penetrations AT FS 576.5 Floor Beam - Rework
• ASC 105 Auto Dependent Surveillance – Broadcast (ADS-B) Out Installation v2 (DO-260B)
• ASC 107 Planeview Avionics Enhancement
• ASC 109 Horizontal Stabilizer Interior Corrosion Inhibiting Compound
• ASC 112 Elevator Hardover Prevention System (HOPS) – Improvement
• ASC 113A Planeview Avionics Enhancement
• ASC 116B/C Nose Landing Gear Harness Installation
• ASC 120 Engine Driven Pump (EDP) Case Drain Hose Routing in Left Pylon
• ASC 122 Pressure Supply Line - Modification
• ASC 123C Planeview Avionics Enhancement
• ASC 124 Nose Landing Gear Electrical Harness & Hyd Brake Line Chafing – Modification
• ASC 127 LED Navigation and Anticollision Strobe Light Upgrade
• ASC 129 Junction Panel Relay Obsolescence Modification
• ASC 134 Auxiliary Hydraulic Pump – Grounding Installation
• ASC 137B Horizontal Stabilizer Cove Panels AV-DEC Gasket Installation
• ASC 143 Horizontal Stabilizer Upper Access Panels Av-Dec Gasket - Installation
• ASC 912C Planeview Master Operating System Software Update
Additional Features and Modifications:
Electric Window Shades
External Camera System
Securaplane 500 Security System
Cockpit Crew Jump Seat
QAR
RAAS
Lightning Sensor System
EVAS
All Club Chairs Have Pull-Out Footrests
LED Cabin Lighting
• ASC 002C Digital FDR System Upgrade (88 Parameters)
• ASC 008 Maximum Gross Weight 75,000 Pounds Placard
• ASC 008B Maximum Gross Weight 75,000 Pounds
• ASC 009 Max Zero Fuel Gross Weight
• ASC 049 Lightning Sensor System (LSS) Installation
• ASC 053 Comm Management FNC ARINC Direct-Datalink
• ASC 061 AM1 Synthetic Vision Primary Flight Display (SV-PFD)
• ASC 065A Runway Awareness Advisory System Installation
• ASC 071 Micro Quick Access Recorder Installation
• ASC 073A Nose Gear Uplock Hook Spring Replacement
• ASC 080/AM1-2 Modification - Wing Rear Beam – Flight Spoiler Actuator Attachment Point
• ASC 084 Enhanced Navigation
o Future Air Navigation System (FANS 1/A+) CPDLC
o Wide Area Augmentation System (WAAS) w/ LPV Approaches
o Circling Approaches
o Temperature Compensated VNAV
o Peaks Display
o Electronic Terminal Charts (Certified Paperless Flight Deck)
o New/Upgraded - 2 GPS Antennas, 2 GPS Modules, 1 CMC Module, & 3 IRUs
o Short-Range/Long-Range Navigation (SRN-LRN) Automatic Preview & Transition
• ASC 089 Stage 4 Noise Standards – Certification
• ASC 090A/AM1 Auxiliary Power Unit (APU) Enclosure – Thermal Barrier Installation
• ASC 092 Comm Management Function (CMF) - SATCOM Direct - Datalink Service Provider
• ASC 093A Aileron Cable Fairleads AT Sponson Rib – Installation
• ASC 094B Landing Gear Door Close – Restrictor
• ASC 099A Aileron and Elevator Power Disconnect - Removal
• ASC 103 TCAS 7.1 Installation
• ASC 104 Aileron Cable Penetrations AT FS 576.5 Floor Beam - Rework
• ASC 105 Auto Dependent Surveillance – Broadcast (ADS-B) Out Installation v2 (DO-260B)
• ASC 107 Planeview Avionics Enhancement
• ASC 109 Horizontal Stabilizer Interior Corrosion Inhibiting Compound
• ASC 112 Elevator Hardover Prevention System (HOPS) – Improvement
• ASC 113A Planeview Avionics Enhancement
• ASC 116B/C Nose Landing Gear Harness Installation
• ASC 120 Engine Driven Pump (EDP) Case Drain Hose Routing in Left Pylon
• ASC 122 Pressure Supply Line - Modification
• ASC 123C Planeview Avionics Enhancement
• ASC 124 Nose Landing Gear Electrical Harness & Hyd Brake Line Chafing – Modification
• ASC 127 LED Navigation and Anticollision Strobe Light Upgrade
• ASC 129 Junction Panel Relay Obsolescence Modification
• ASC 134 Auxiliary Hydraulic Pump – Grounding Installation
• ASC 137B Horizontal Stabilizer Cove Panels AV-DEC Gasket Installation
• ASC 143 Horizontal Stabilizer Upper Access Panels Av-Dec Gasket - Installation
• ASC 912C Planeview Master Operating System Software Update
Additional Features and Modifications:
Electric Window Shades
External Camera System
Securaplane 500 Security System
Cockpit Crew Jump Seat
QAR
RAAS
Lightning Sensor System
EVAS
All Club Chairs Have Pull-Out Footrests
LED Cabin Lighting

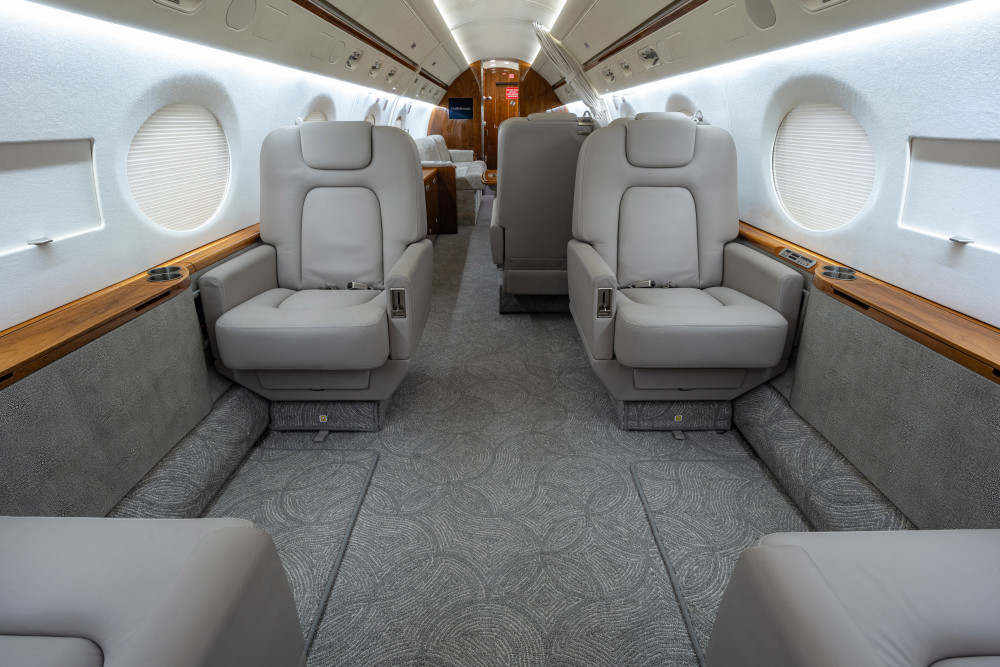

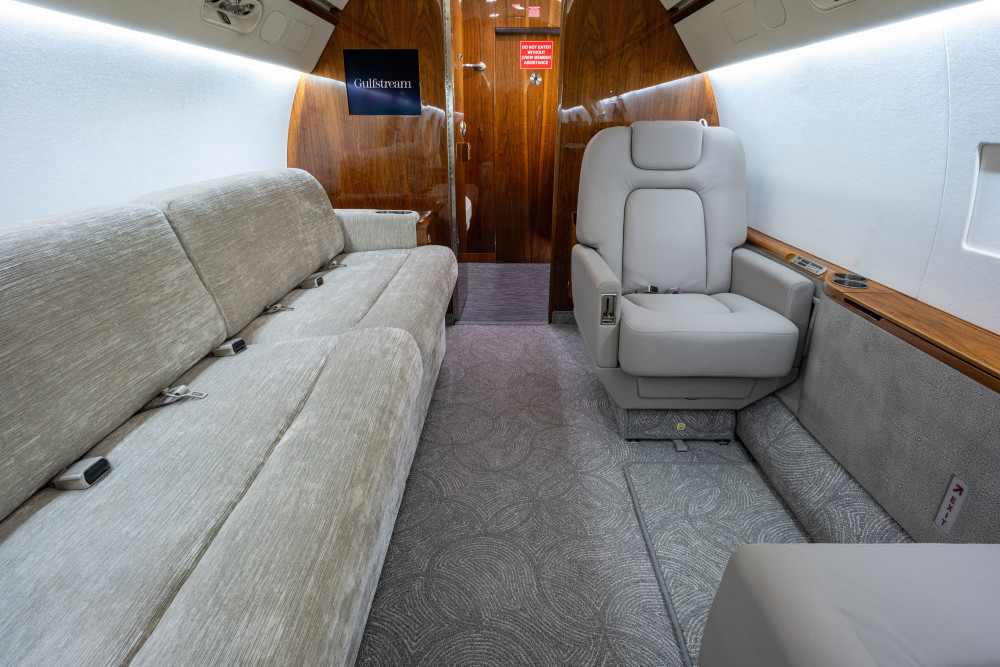

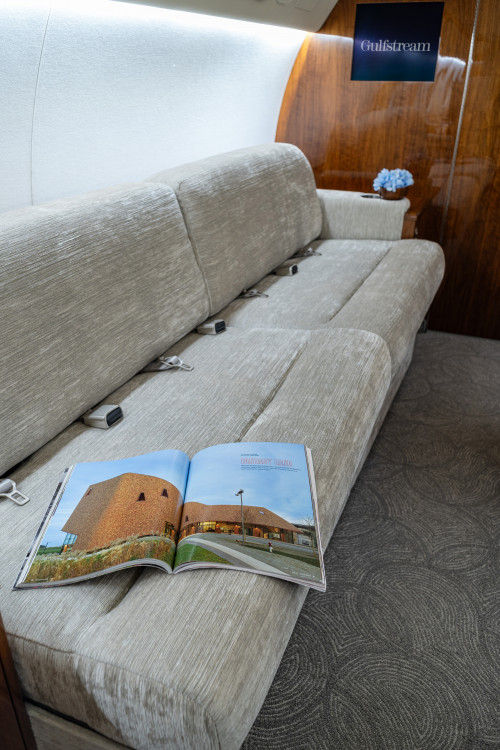

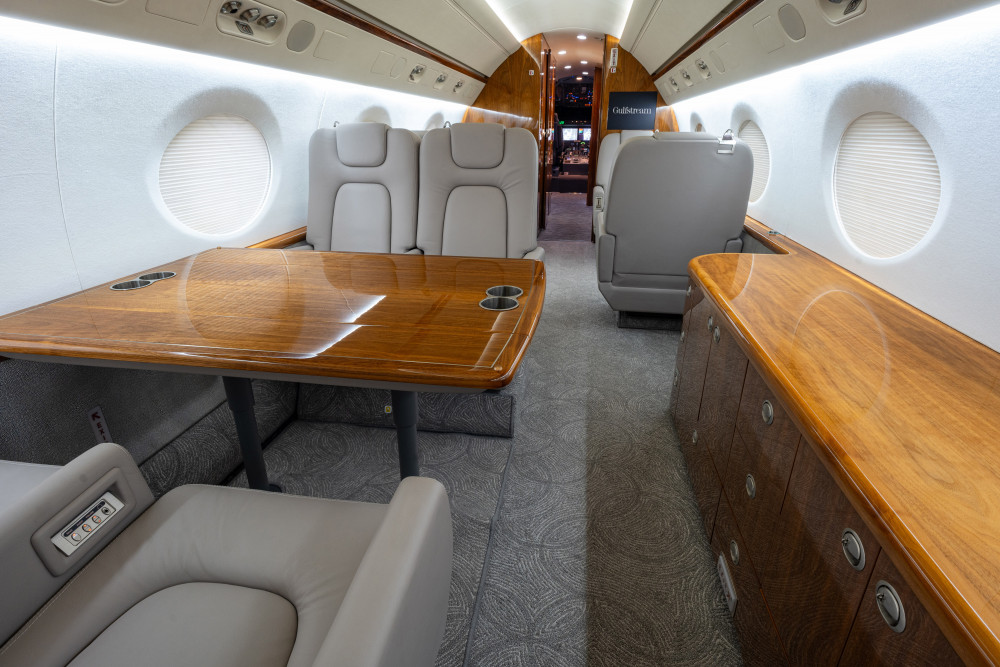

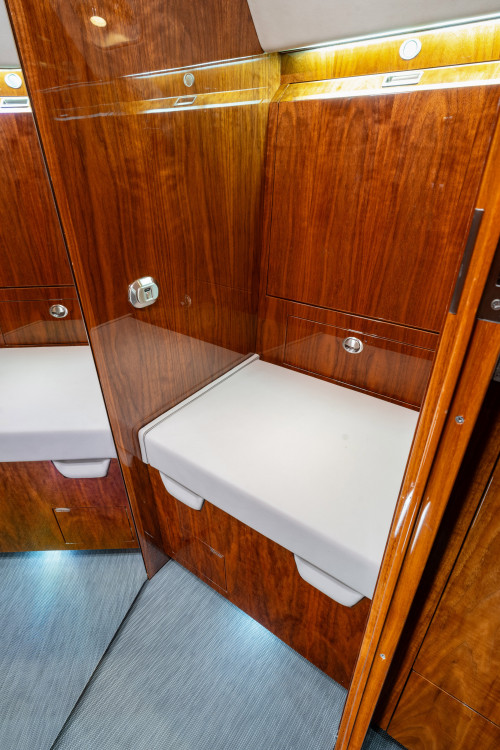

Interior
New Soft Goods December 2021 @ International Jet Interiors, Ronkonkoma, NY

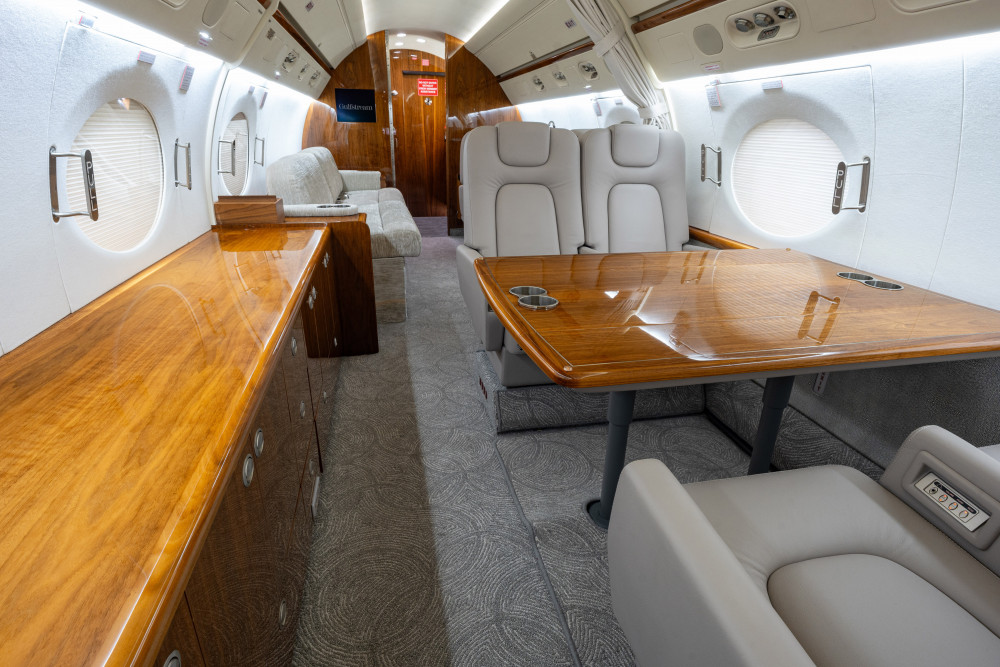

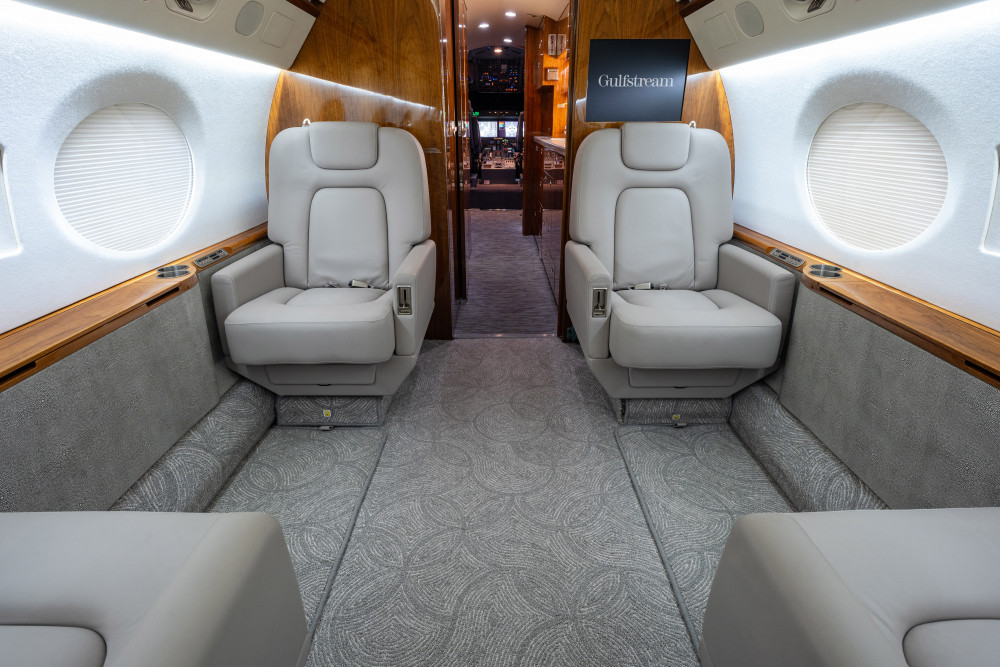

Fourteen (14) passenger Forward Galley Universal Floorplan with fire-blocked interior featuring a crew jump seat, right-side forward crew vacuum lavatory with stowable sink assembly, left-side forward crew rest compartment, right-side forward main galley, aft main vacuum lavatory, aft baggage compartment, and electric window shades. The main cabin, separated from the forward main galley area by a hinged door, features a forward-cabin 4-place club, a mid-cabin left-side 4-place conference group with Hi-Lo Table opposite a credenza, and an aft-cabin left-side 2-place club opposite a 4-place berthable divan separated from the mid-cabin by a removeable curtain. The forward-cabin 4-place club and aft-cabin left-side 2-place club includes stowable executive writing and dining tables between the opposing club chairs. The club and conference group chairs are upholstered in a light beige leather, the divan in a coordinated light beige textured fabric, complemented by a neutral pattern beige carpet. The wood/cabinetry is a medium colored high gloss veneer complemented by brushed satin nickel plating on all hardware.

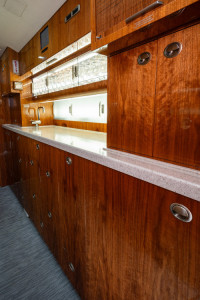

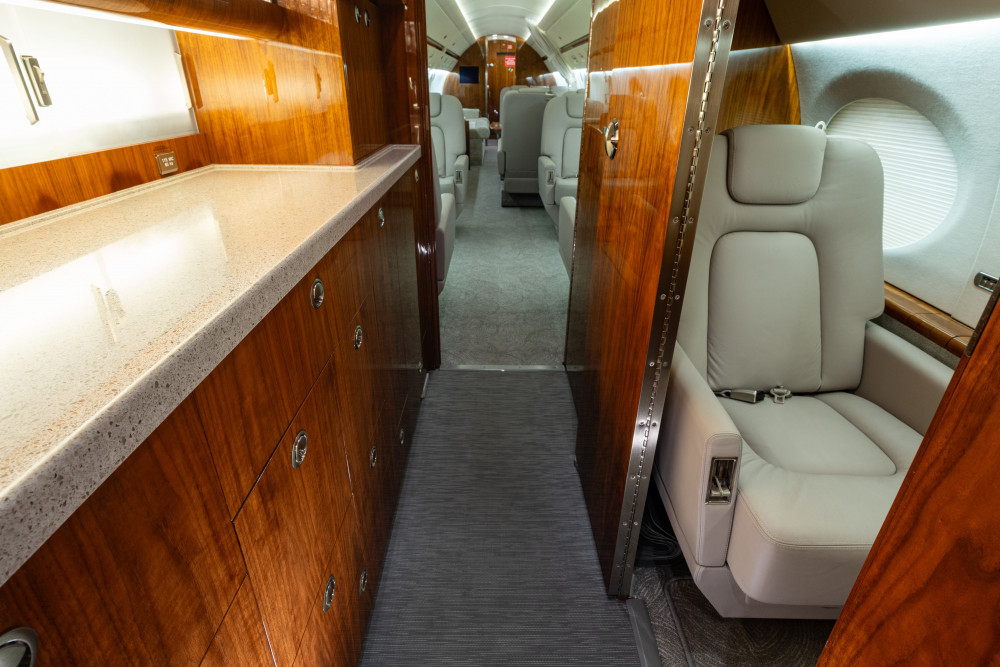

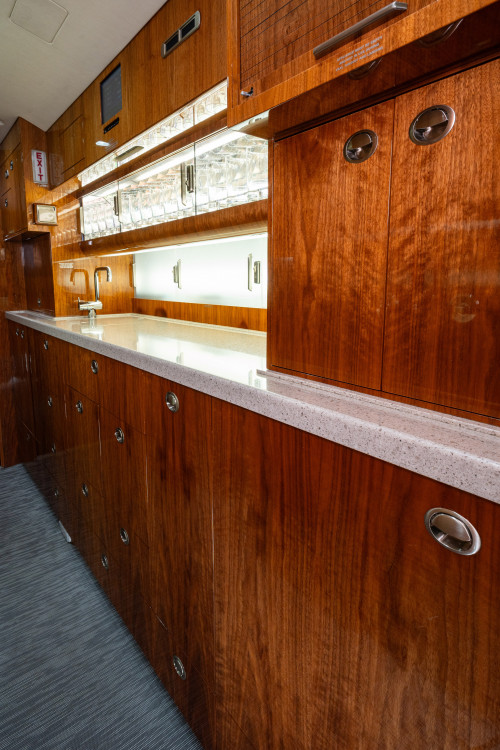

The right-side full-service Forward Galley is equipped to provide full meal and beverage service to passengers. The galley features a high-temperature oven, Sharp microwave oven, stainless steel sink with faucet assembly, touch-screen monitor, crystal and cutlery storage, waste container, dirty dish drawer, miscellaneous storage, china, & crystal storage, ice compartment, can drink storage, thermo-electric cooled food storage compartment with adjustable shelves, and miscellaneous storage, and 115V/60Hz universal outlet. The private aft lavatory and dressing area features a mirrored, lighted vanity, sink, central vacuum style flushing toilet, ample closet and storage areas, and in-flight accessibility to the spacious walk-in aft baggage compartment.

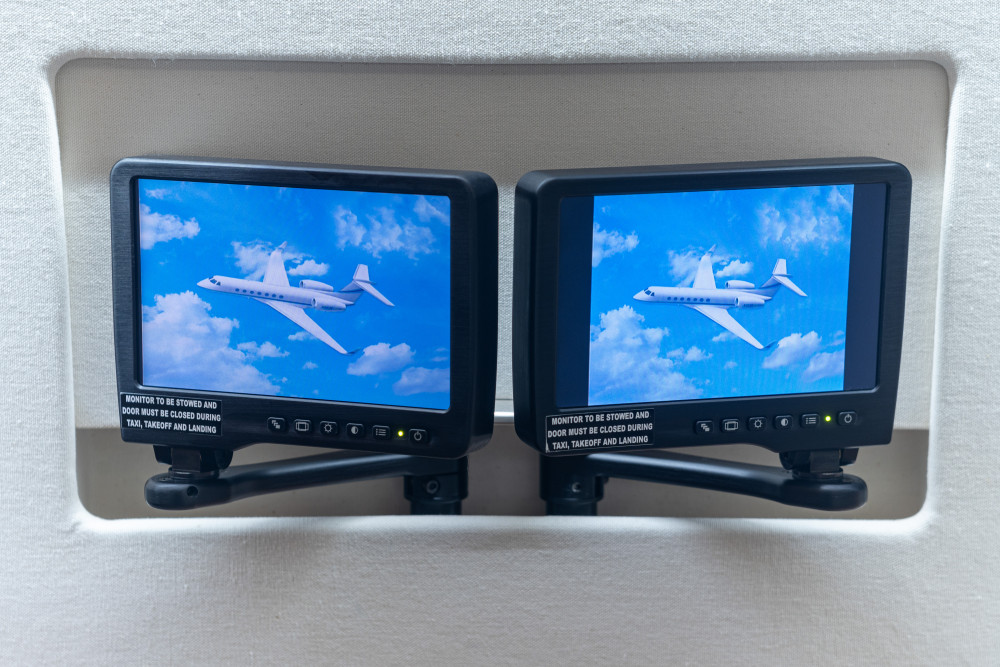

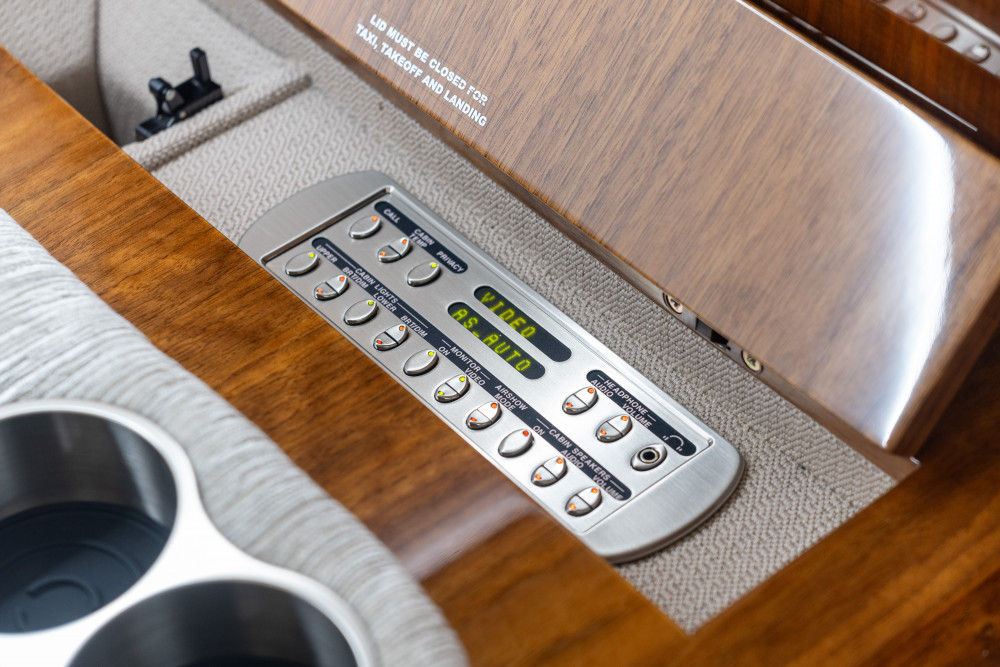

Cabin entertainment includes Airshow 4000 which can be viewed on One (1) 20” LCD Monitor in the Right-Hand Fwd Cabin Bulkhead, One (1) 17” LCD Monitor in the Right-Hand Aft Cabin Bulkhead, and Seven (7) 7” LCD Personal Monitors at each of the seven single seats (Includes CR). The aircraft is also equipped with Honeywell Ka-Band Hi-Speed Internet Service connected via a wireless LAN.
NOTE: New Soft Goods (Club Chairs Reupholstered, New Divan Fabric, New Carpet, New Lower Sidewalls) December 2021 @ International Jet Interiors, Ronkonkoma, NY.

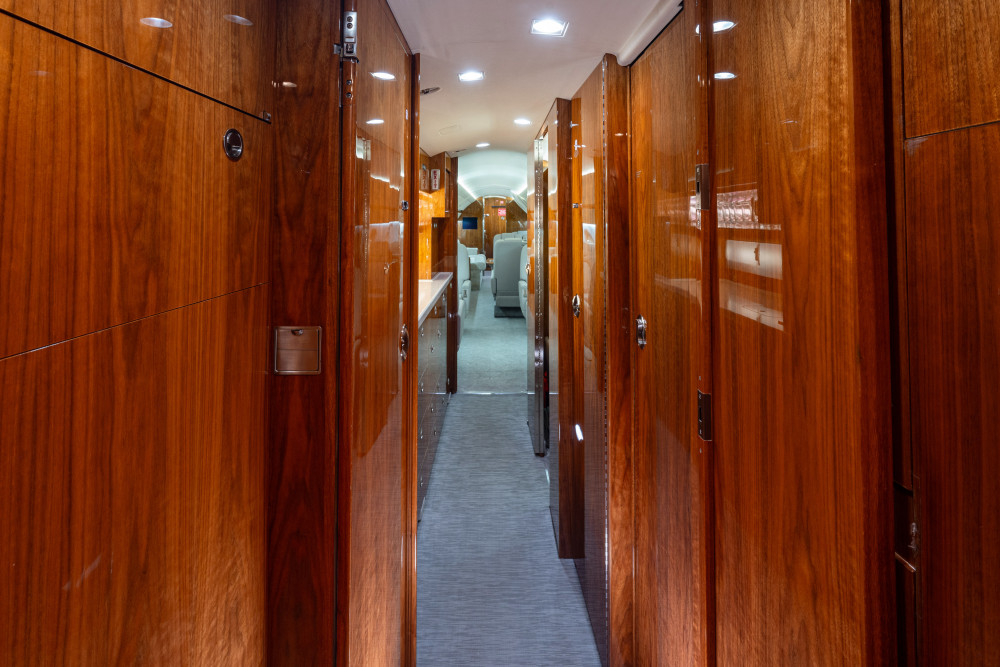

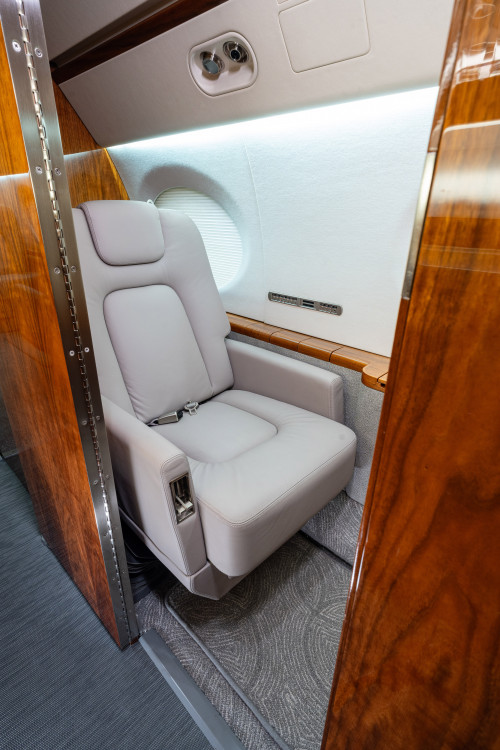

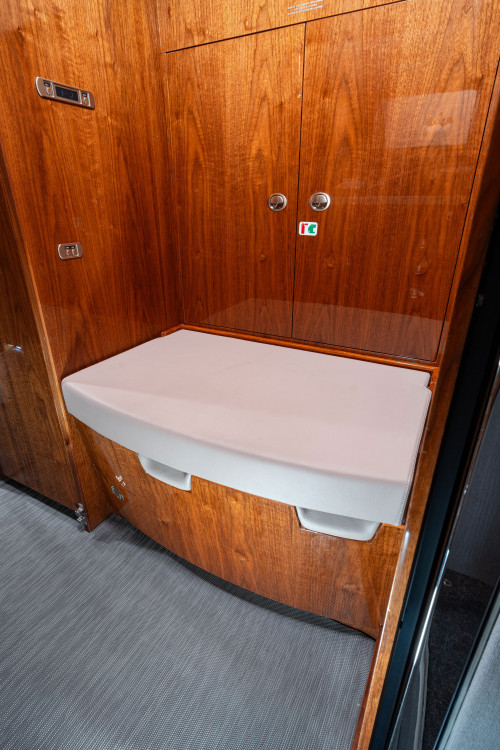

Fourteen (14) passenger Forward Galley Universal Floorplan with fire-blocked interior featuring a crew jump seat, right-side forward crew vacuum lavatory with stowable sink assembly, left-side forward crew rest compartment, right-side forward main galley, aft main vacuum lavatory, aft baggage compartment, and electric window shades. The main cabin, separated from the forward main galley area by a hinged door, features a forward-cabin 4-place club, a mid-cabin left-side 4-place conference group with Hi-Lo Table opposite a credenza, and an aft-cabin left-side 2-place club opposite a 4-place berthable divan separated from the mid-cabin by a removeable curtain. The forward-cabin 4-place club and aft-cabin left-side 2-place club includes stowable executive writing and dining tables between the opposing club chairs. The club and conference group chairs are upholstered in a light beige leather, the divan in a coordinated light beige textured fabric, complemented by a neutral pattern beige carpet. The wood/cabinetry is a medium colored high gloss veneer complemented by brushed satin nickel plating on all hardware.

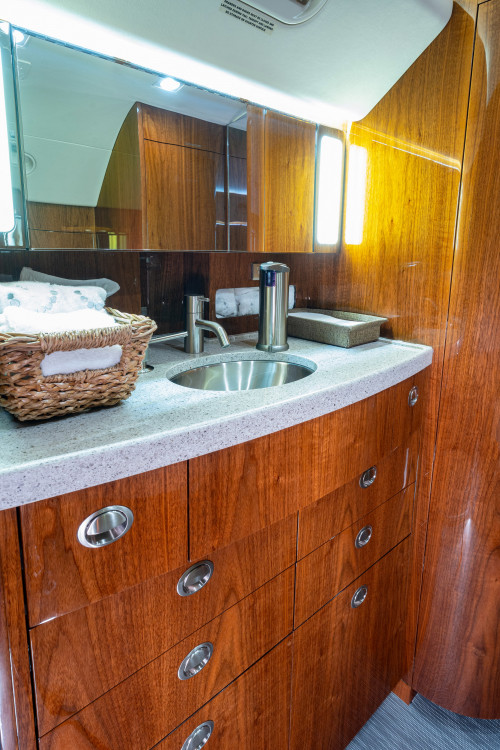

The right-side full-service Forward Galley is equipped to provide full meal and beverage service to passengers. The galley features a high-temperature oven, Sharp microwave oven, stainless steel sink with faucet assembly, touch-screen monitor, crystal and cutlery storage, waste container, dirty dish drawer, miscellaneous storage, china, & crystal storage, ice compartment, can drink storage, thermo-electric cooled food storage compartment with adjustable shelves, and miscellaneous storage, and 115V/60Hz universal outlet. The private aft lavatory and dressing area features a mirrored, lighted vanity, sink, central vacuum style flushing toilet, ample closet and storage areas, and in-flight accessibility to the spacious walk-in aft baggage compartment.
Cabin entertainment includes Airshow 4000 which can be viewed on One (1) 20” LCD Monitor in the Right-Hand Fwd Cabin Bulkhead, One (1) 17” LCD Monitor in the Right-Hand Aft Cabin Bulkhead, and Seven (7) 7” LCD Personal Monitors at each of the seven single seats (Includes CR). The aircraft is also equipped with Honeywell Ka-Band Hi-Speed Internet Service connected via a wireless LAN.
NOTE: New Soft Goods (Club Chairs Reupholstered, New Divan Fabric, New Carpet, New Lower Sidewalls) December 2021 @ International Jet Interiors, Ronkonkoma, NY.
Entertainment
Honeywell Ka-Band Hi-Speed Internet Service
Airshow 4000
One (1) 20" LCD Monitor in Right-Hand Forward Bulkhead
One (1) 17" LCD Monitor in Right-Hand Aft Bulkhead
Seven (7) 7” LCD Monitors In The Window Panel at Each Club Seat & Crew Rest Area
SDR and SD Gateway Redundancy Routers
Honeywell MCS 7000+ Satcom with SD Gateway
True North (Satcom Direct) Gateway Iridium Satellite Phone System
(2) Wireless Handsets And (1) Wired Handset (In Cockpit)
115V Outlets In Cabin
Airshow 4000
One (1) 20" LCD Monitor in Right-Hand Forward Bulkhead
One (1) 17" LCD Monitor in Right-Hand Aft Bulkhead
Seven (7) 7” LCD Monitors In The Window Panel at Each Club Seat & Crew Rest Area
SDR and SD Gateway Redundancy Routers
Honeywell MCS 7000+ Satcom with SD Gateway
True North (Satcom Direct) Gateway Iridium Satellite Phone System
(2) Wireless Handsets And (1) Wired Handset (In Cockpit)
115V Outlets In Cabin
Exterior

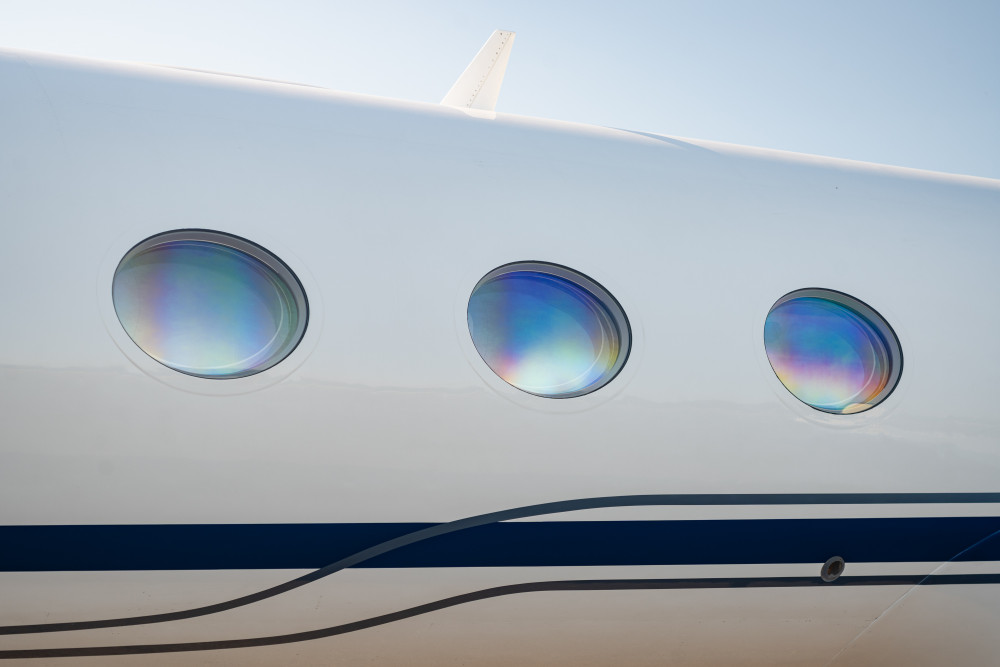

Original 2009 Paint w/ New Stripes Painted November 2021

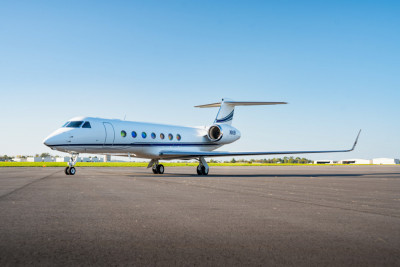

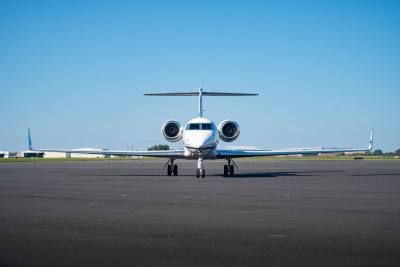

Overall Matterhorn White with Dark Blue & Blue Pearl Accent Striping.
Overall Matterhorn White with Dark Blue & Blue Pearl Accent Striping.
Weights
Empty Weight:
47,376.00
Basic Operating Weight:
48,804.00
