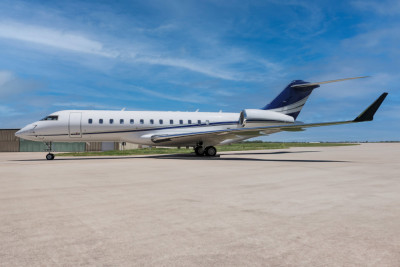

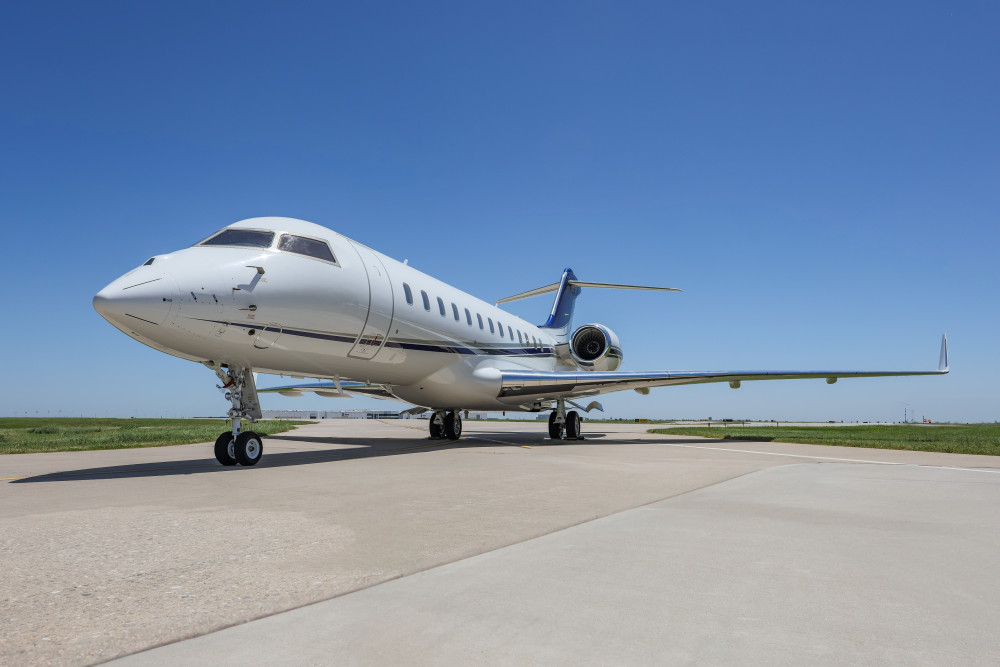

2010 Bombardier Global XRS
Price: Call for Price
- Serial Number: 9326
- Tail Number: N326GX
- Hours: 5,671
- Cycles: 1,633
• Newly installed Starlink
• Excellent ownership history
• Stunning paint and interior
• Rolls Royce Corporate Care
• Recent inspections completed
• Excellent ownership history
• Stunning paint and interior
• Rolls Royce Corporate Care
• Recent inspections completed
Offered by:
Long Beach, CA
Airframe
Total Hours:
5,671
Total Cycles:
1,633
Engines
Engine Program Coverage:
Rolls Royce Corporate Care (RRCC)
Engine 1
Hours Since New:
5,671
Cycles Since New:
1,633
Engine 2
Hours Since New:
5,671
Cycles Since New:
1,633
APU
APU Program Coverage:
MSP Gold
Total Time Since New:
3,448

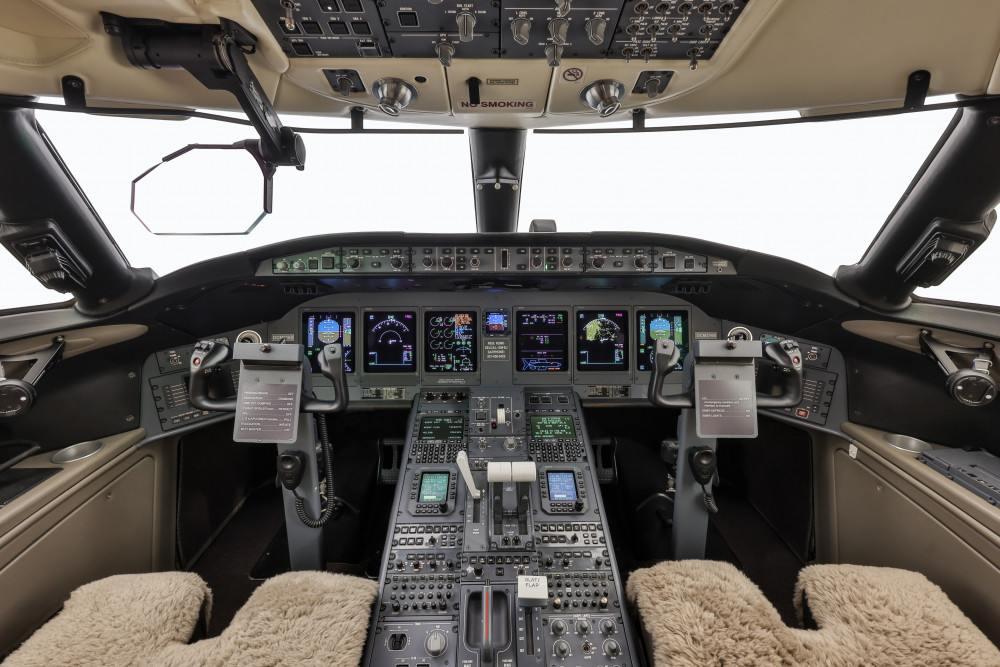

Avionics
ADS-B Out Equipped:Yes
FANS Equipped:Yes
WAAS Equipped:Yes
LPV Equipped:Yes
HUD Equipped:Yes
Newly installed Starlink
Triple Honeywell NZ-2000 FMS ver. 6.1 with WAAS/LPV/RNP4
Triple IC-800 Integrated Avionics Computers (IAC) Batch 3 compliant
Dual Honeywell HG2021GD04 GPS Sensor Units (SBAS/LPV)
Triple Honeywell Laseref IV IRS Units
Thales/Sextant Head-Up Flight Display System (HUD)
Bombardier Enhanced Vision System (EVS) with ability to display on HUD
Integrated Electronic Standby Indicator System
Triple Honeywell AZ-950 Micro Air Data Computers
Triple Honeywell ACARS Airborne Data Link System (FANS 1/A compliant)
Dual Honeywell RNZ-833K Transponders with ADS-B (OUT)
Dual Honeywell RNZ-851 Integrated VHF Nav Radios (FM Immunity)
Triple Honeywell Primus II Nav/Com VHF Transceivers with 8.33 Spacing
Dual Honeywell HF-9031A with Selcal
Honeywell Mark V EGPWS
Dual Collins ALT-4000 Radio Altimeters
Honeywell Primus 880 Color Radar
Honeywell LSZ-860 Lightning Sensor System
Honeywell TCAS 2000 System with ver. 7.1 upgrade
CAIMS (-801) ver. 8.0
Honeywell DCVR (FANS compliant)
Honeywell DFDR with QAR
Miltope Flight Compartment Printer
Artex 406 ELT
Batch 3 c/w with 3.3 software upgrade
ADS-B OUT
Windshear escape guidance
Triple Honeywell NZ-2000 FMS ver. 6.1 with WAAS/LPV/RNP4
Triple IC-800 Integrated Avionics Computers (IAC) Batch 3 compliant
Dual Honeywell HG2021GD04 GPS Sensor Units (SBAS/LPV)
Triple Honeywell Laseref IV IRS Units
Thales/Sextant Head-Up Flight Display System (HUD)
Bombardier Enhanced Vision System (EVS) with ability to display on HUD
Integrated Electronic Standby Indicator System
Triple Honeywell AZ-950 Micro Air Data Computers
Triple Honeywell ACARS Airborne Data Link System (FANS 1/A compliant)
Dual Honeywell RNZ-833K Transponders with ADS-B (OUT)
Dual Honeywell RNZ-851 Integrated VHF Nav Radios (FM Immunity)
Triple Honeywell Primus II Nav/Com VHF Transceivers with 8.33 Spacing
Dual Honeywell HF-9031A with Selcal
Honeywell Mark V EGPWS
Dual Collins ALT-4000 Radio Altimeters
Honeywell Primus 880 Color Radar
Honeywell LSZ-860 Lightning Sensor System
Honeywell TCAS 2000 System with ver. 7.1 upgrade
CAIMS (-801) ver. 8.0
Honeywell DCVR (FANS compliant)
Honeywell DFDR with QAR
Miltope Flight Compartment Printer
Artex 406 ELT
Batch 3 c/w with 3.3 software upgrade
ADS-B OUT
Windshear escape guidance
Navigation and Compliance
FANS Equipped:Yes
ADS-B Equipped:Yes
RNP 4 Equipped:Yes
Interior
Number Of Passengers:
14
Forward Galley: Yes
Forward Lavatory: Yes
Aft Lavatory: Yes
Interior Last Refurbished:
2018
New soft goods and wood veneer in December 2018.

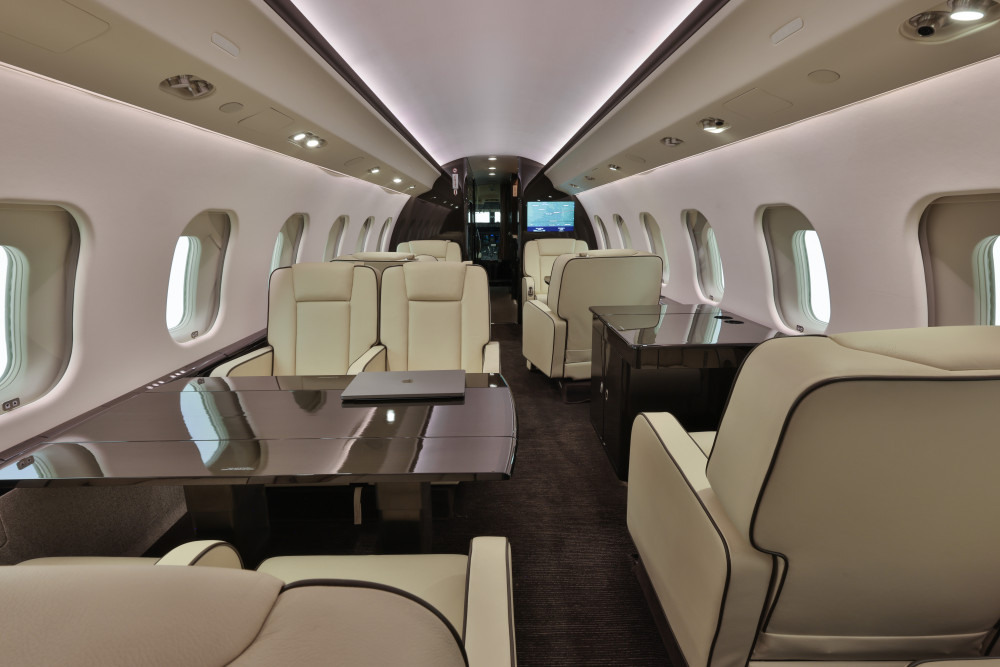

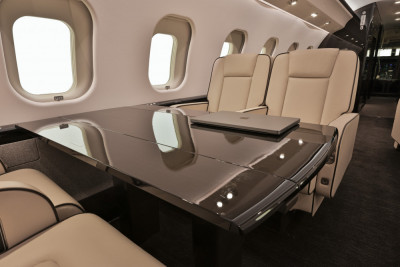

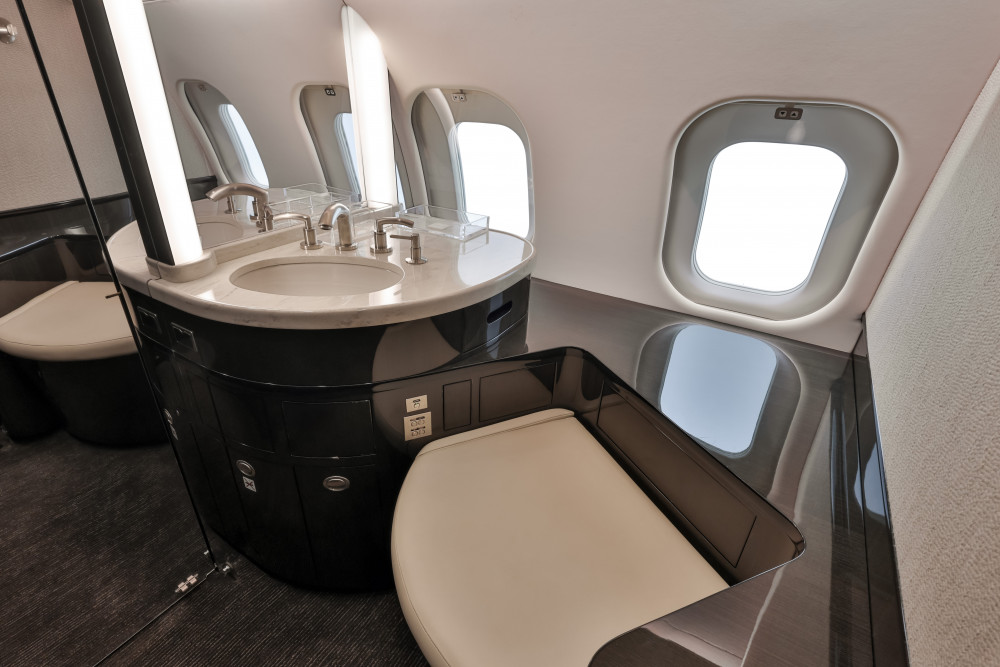

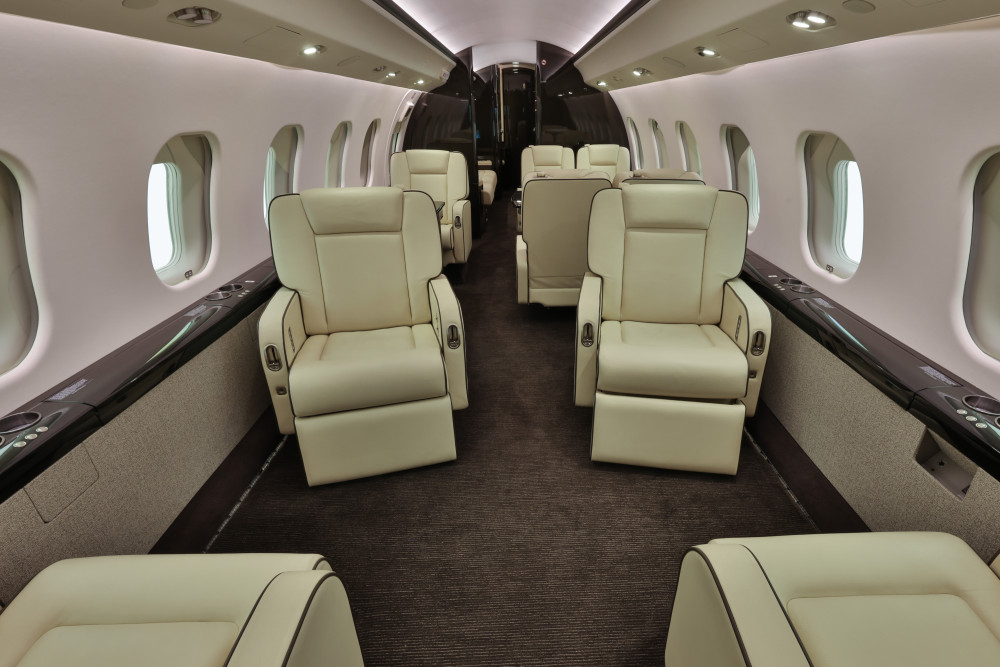

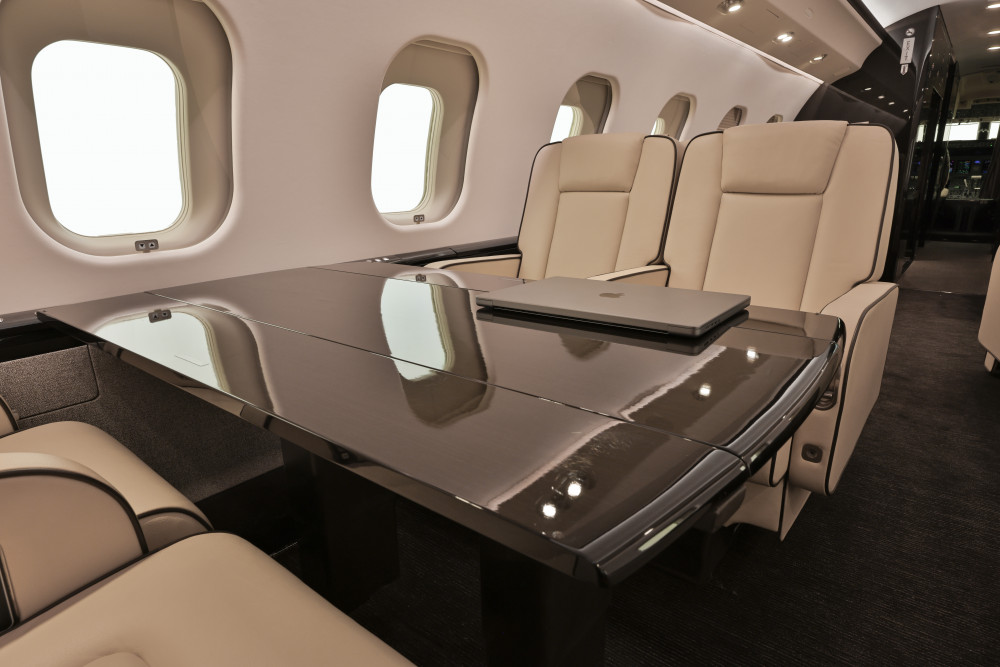

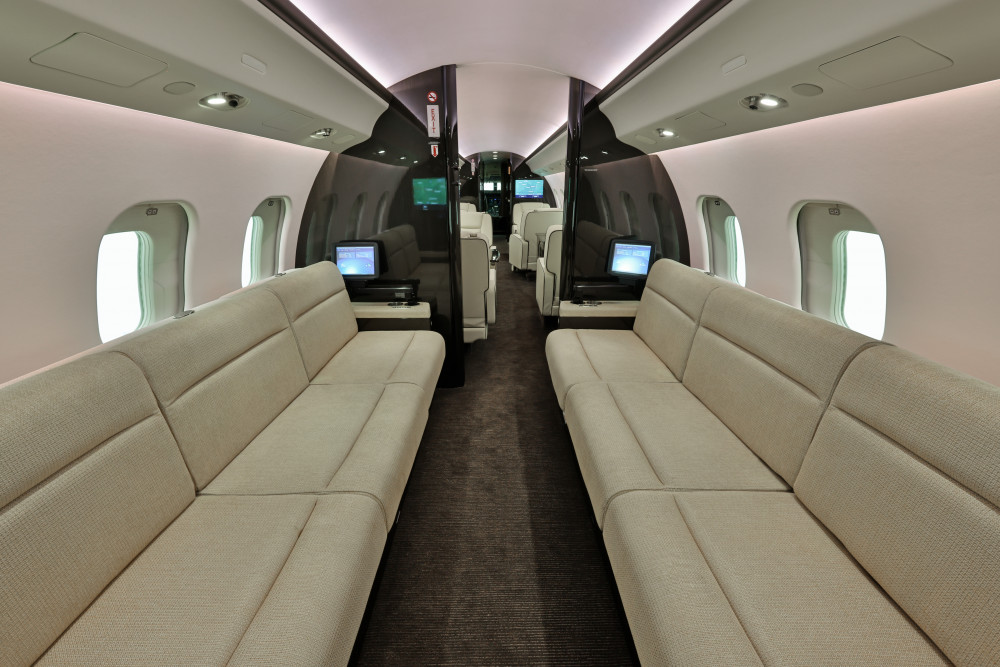

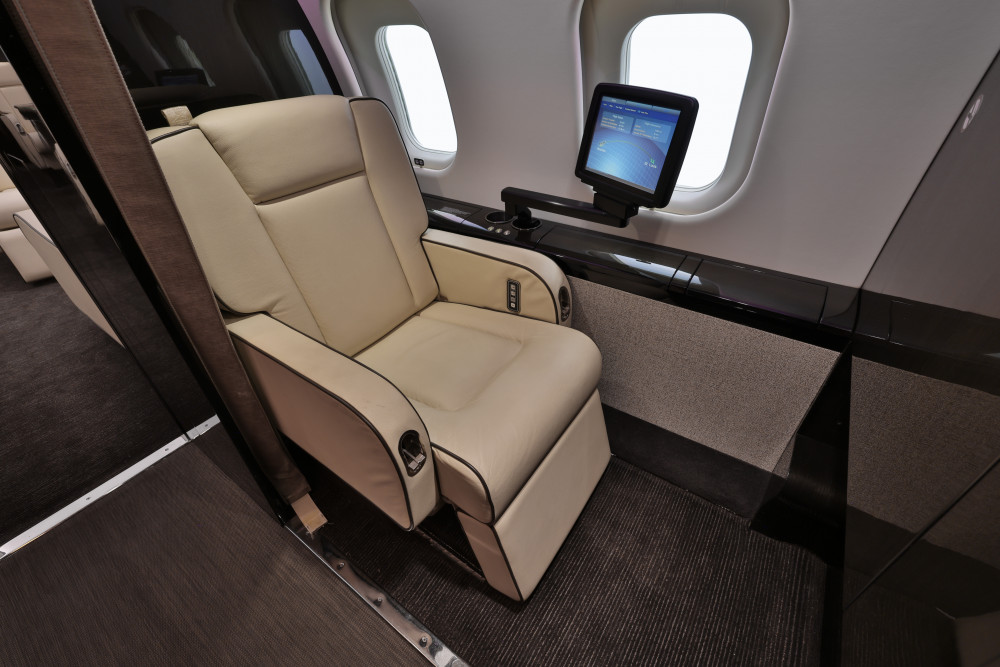

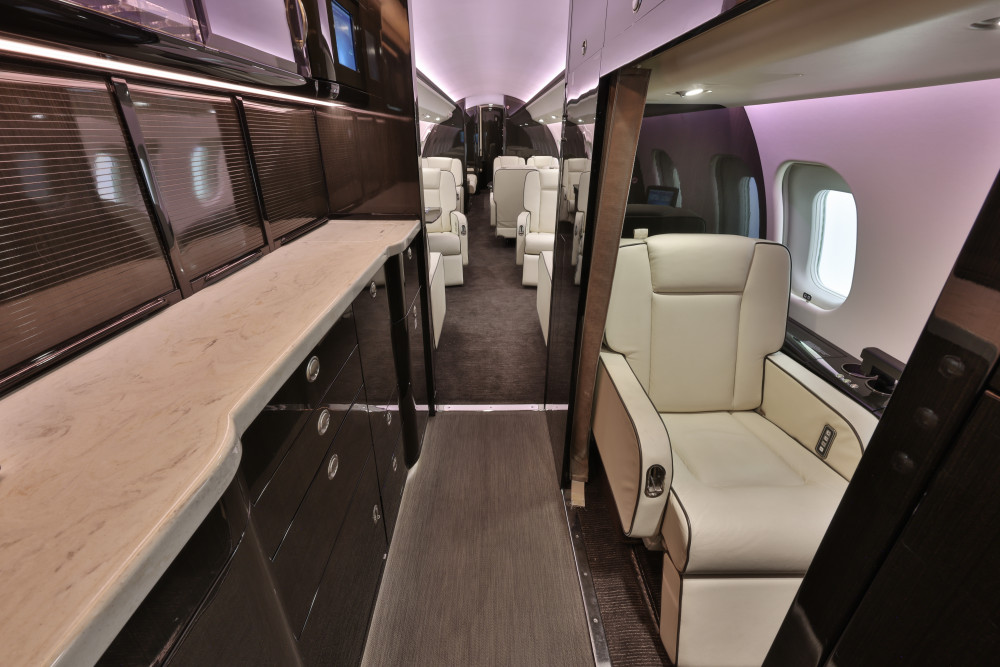

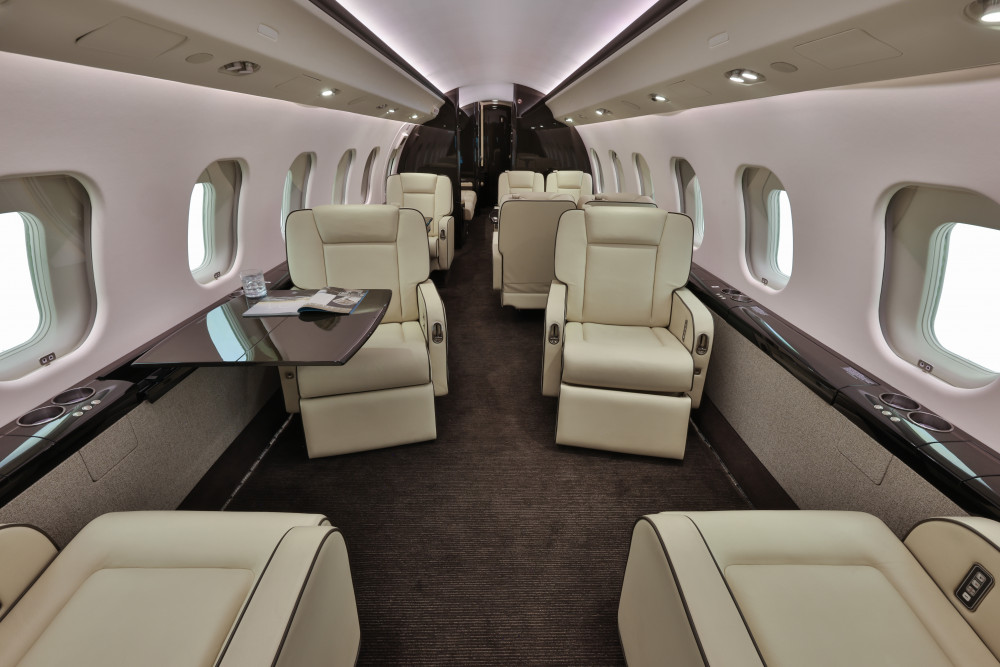

The cabin is configured for 14 passengers. Immediately aft of the cockpit features a right-hand forward lavatory, followed by the forward right-hand galley, which is equipped with a TIA Wavejet Microwave, TIA Hi-Temp Oven, Espresso and TIA Coffee Maker and an Air Chiller. Opposing the galley is left-hand crew rest area just aft of the main entrance door. Continuing aft through a pocket door and entering the main cabin area is a four (4) place club followed by a left-hand four (4) place conference group that opposes a single seat and workstation. A cabin bulkhead with a pocket door separates this area from the aft cabin seating. Moving aft through the pocket door is a left-hand two (2) place berthable 16G divan that opposes a right-hand three (3) place berthable 16G divan, which is certified for only two (2) TT&L passengers when the removable bulkhead is installed on the right-hand side. Further aft is the lavatory followed by the baggage compartment.
The cabin is configured for 14 passengers. Immediately aft of the cockpit features a right-hand forward lavatory, followed by the forward right-hand galley, which is equipped with a TIA Wavejet Microwave, TIA Hi-Temp Oven, Espresso and TIA Coffee Maker and an Air Chiller. Opposing the galley is left-hand crew rest area just aft of the main entrance door. Continuing aft through a pocket door and entering the main cabin area is a four (4) place club followed by a left-hand four (4) place conference group that opposes a single seat and workstation. A cabin bulkhead with a pocket door separates this area from the aft cabin seating. Moving aft through the pocket door is a left-hand two (2) place berthable 16G divan that opposes a right-hand three (3) place berthable 16G divan, which is certified for only two (2) TT&L passengers when the removable bulkhead is installed on the right-hand side. Further aft is the lavatory followed by the baggage compartment.
Entertainment
Starlink High Speed System GoGo Avance L5
EVAS
Collins Swift Broadband High Speed System
Collins Satcom SAT-6100
Honeywell/EMS CNX-200 Wireless Router Crewmember PBE
Collins CES-5000 ver. 7.1.5 Electric Window Shades
Central Cabin Entertainment Control Cabinet
LED lighting
Wireless Cabin Printer/Fax Vacuum lavatory system
Airshow ASXi External APU hourmeter
Visor system
Dual Cabin Frequency Converters w/110v outlets
Humidifier system
High Speed Data Ethernet ports to CNX-200 Router
Logo lights
Wireless LAN 1 SAFE
Passenger audio/video ports and controls throughout
OBDS Electronic checklist
ICS 200 Telephone system 10.4” Galley Touch Screen
ICG 3000 Aerocom 2 – 24” cabin monitors Autopilot emergency descent mode
Additional refuel/defuel in upper entrance enclosure
Securaplane 500 w/camera system
EVAS
Collins Swift Broadband High Speed System
Collins Satcom SAT-6100
Honeywell/EMS CNX-200 Wireless Router Crewmember PBE
Collins CES-5000 ver. 7.1.5 Electric Window Shades
Central Cabin Entertainment Control Cabinet
LED lighting
Wireless Cabin Printer/Fax Vacuum lavatory system
Airshow ASXi External APU hourmeter
Visor system
Dual Cabin Frequency Converters w/110v outlets
Humidifier system
High Speed Data Ethernet ports to CNX-200 Router
Logo lights
Wireless LAN 1 SAFE
Passenger audio/video ports and controls throughout
OBDS Electronic checklist
ICS 200 Telephone system 10.4” Galley Touch Screen
ICG 3000 Aerocom 2 – 24” cabin monitors Autopilot emergency descent mode
Additional refuel/defuel in upper entrance enclosure
Securaplane 500 w/camera system
Exterior
Base Paint Colors:
Matterhorn White base
Stripe Colors:
Cool Gray, Concorde Blue, Titanium and Cumulus Gray accent striping
Last Painted:
2018
New paint in December 2018
