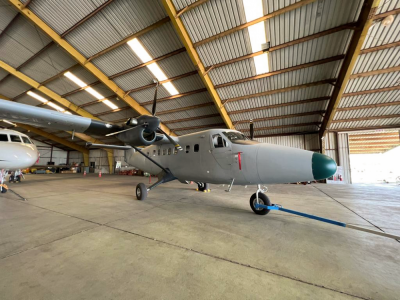

1968 De-Havilland DHC-6-200 Twin Otter
Price: Contact Broker
- Serial Number: 119
- Hours: 29,203
- Cycles: 51,109
• Extensively Restored in 2012 by Altenrhein Aviation (Switzerland)
• New Engines & Props Installed in 2012
• VIP / Utility Interior Configuration – 11 Seats Including Club Seating and Aft Toilet Compartment
• Avionics Upgrade: Garmin G600 Suite, Autopilot, TCAS, GWX68 Radar
• Air Conditioning
• New Engines & Props Installed in 2012
• VIP / Utility Interior Configuration – 11 Seats Including Club Seating and Aft Toilet Compartment
• Avionics Upgrade: Garmin G600 Suite, Autopilot, TCAS, GWX68 Radar
• Air Conditioning
Airframe
Total Hours:
29,203
Total Cycles:
51,109
Engines
Pratt & Whitney Canada PT6A-34
Engine 1
Serial Number:
PCE-RB0627
Hours Since New:
425
Cycles Since New:
349
Engine 2
Serial Number:
PCE-RB0628
Hours Since New:
425
Cycles Since New:
349

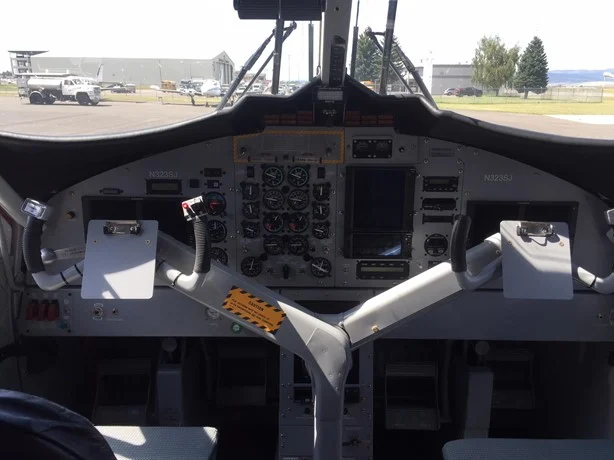

Avionics
Garmin G600 Suite (per EASA STC 1004883 REV.2), including:
• Dual Garmin G600 PFD's
• Garmin GTN750 WAAS GPS/NAV/COM
• Garmin GTN650 WAAS GPS/NAV/COM
• Garmin GMA 35 Audio
• Garmin 796 GPS
• 2x Garmin GTX33 Transponder ADS-B
• Garmin GTS850 TCAS 1 Traffic System
• Garmin GWX68 Weather Radar
• Garmin GSR56 Iridium Satellite Datalink
• Kannad 406AF ELT
• S-TEC 65 Autopilot
• Bendix King KR87 Digital ADF
• Bendix King KN63 Digital DME
• Mid-Continent Emergency Standby Attitude/Airspeed/Altimeter
• Dual Garmin G600 PFD's
• Garmin GTN750 WAAS GPS/NAV/COM
• Garmin GTN650 WAAS GPS/NAV/COM
• Garmin GMA 35 Audio
• Garmin 796 GPS
• 2x Garmin GTX33 Transponder ADS-B
• Garmin GTS850 TCAS 1 Traffic System
• Garmin GWX68 Weather Radar
• Garmin GSR56 Iridium Satellite Datalink
• Kannad 406AF ELT
• S-TEC 65 Autopilot
• Bendix King KR87 Digital ADF
• Bendix King KN63 Digital DME
• Mid-Continent Emergency Standby Attitude/Airspeed/Altimeter
Props
Prop 1
Manufacturer:
Hartzell
Model:
HC-B3TN-3D
Hours Since New:
425
Prop 2
Manufacturer:
Hartzell
Model:
HC-B3TN-3D
Hours Since New:
425
Prop Information
Serial Number 1: BUA32280
Serial Number 2: BUA32280
Serial Number 2: BUA32280
Additional Equipment/Features
Extensive Restoration in 2012
Extensive Restoration in 2012 by Altenrhein Aviation (Switzerland), including:
• Replaced Main Frame and LH/RH Side-frames
• Replaced LH and RH Wing Struts
• Structural Repair of LH/RH Wings, Replaced Front Spar Adapters
• Replaced LH and RH Lower Spar Cap Angles including Scuff Plates
• Replaced Forward Aluminum Wing Adapters with Steel Ones
• Replaced All 15 Fuel Cells
• Performed Complete Re-wiring of Aircraft
• Replaced all Flight Control Cables (Rudder, Elevator & Aileron)
• Replaced Forward & Aft Fuel Tank Manifolds
• Replaced Airframe Fuel Hoses
• Sheet Metal Repairs on Flaps, Ailerons, Elevators & Rudders
• Cabin Roof Panels and Lower Fuselage Skin Partially Replaced
• Cleveland Wheel and Brake Conversion Kit 199-92, STC SA1065GL
• New Avionics and Autopilot Installed at Restoration
• Zimex Flap Roller STC
• Overhauled Hydraulic Accumulator
• Replaced Hydraulic Pump and Motor
• Replaced All Glass & Heated Windshield
• Compass Accuracy Verification: ADAHRS (KSG 7200) Installed
Extensive Restoration in 2012 by Altenrhein Aviation (Switzerland), including:
• Replaced Main Frame and LH/RH Side-frames
• Replaced LH and RH Wing Struts
• Structural Repair of LH/RH Wings, Replaced Front Spar Adapters
• Replaced LH and RH Lower Spar Cap Angles including Scuff Plates
• Replaced Forward Aluminum Wing Adapters with Steel Ones
• Replaced All 15 Fuel Cells
• Performed Complete Re-wiring of Aircraft
• Replaced all Flight Control Cables (Rudder, Elevator & Aileron)
• Replaced Forward & Aft Fuel Tank Manifolds
• Replaced Airframe Fuel Hoses
• Sheet Metal Repairs on Flaps, Ailerons, Elevators & Rudders
• Cabin Roof Panels and Lower Fuselage Skin Partially Replaced
• Cleveland Wheel and Brake Conversion Kit 199-92, STC SA1065GL
• New Avionics and Autopilot Installed at Restoration
• Zimex Flap Roller STC
• Overhauled Hydraulic Accumulator
• Replaced Hydraulic Pump and Motor
• Replaced All Glass & Heated Windshield
• Compass Accuracy Verification: ADAHRS (KSG 7200) Installed

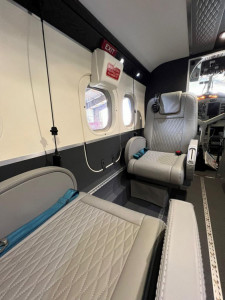

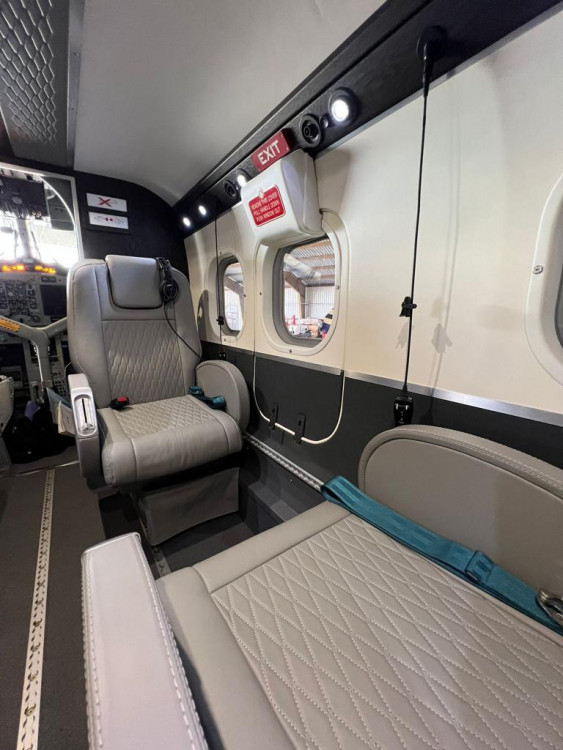

Interior
Number Of Passengers:
11
Aft Lavatory: Yes

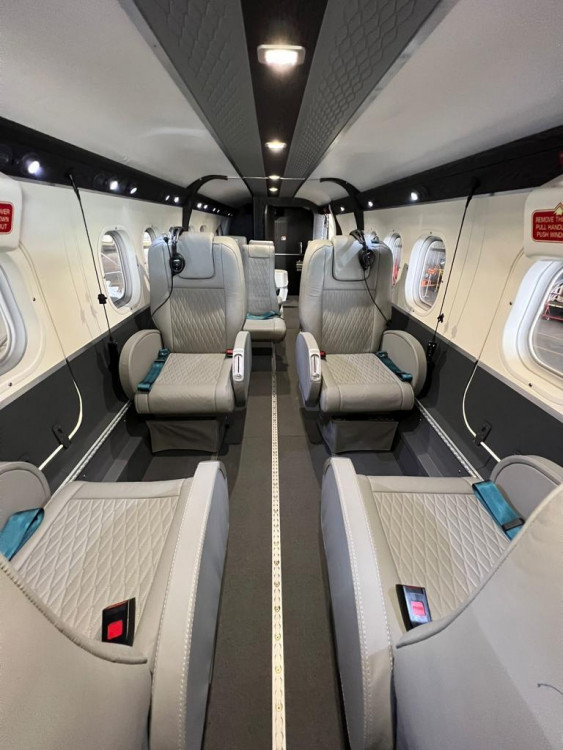

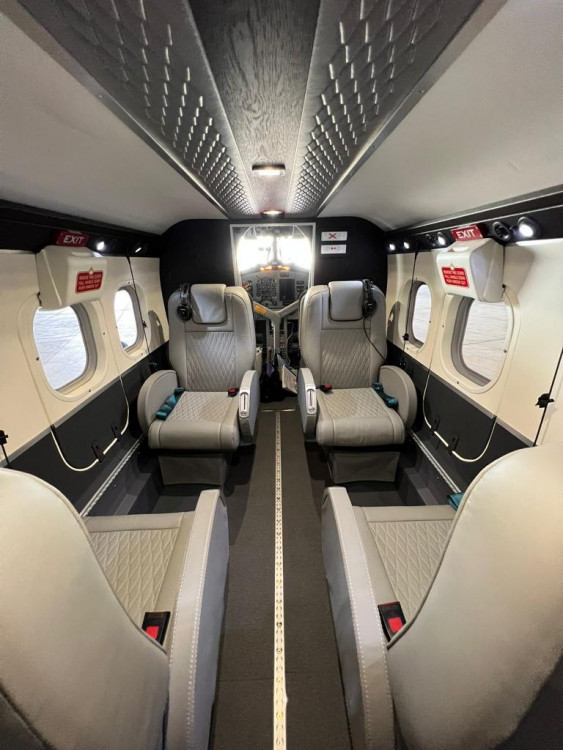

Forward Cabin Configuration: Club seating arrangement (4 seats facing each other)

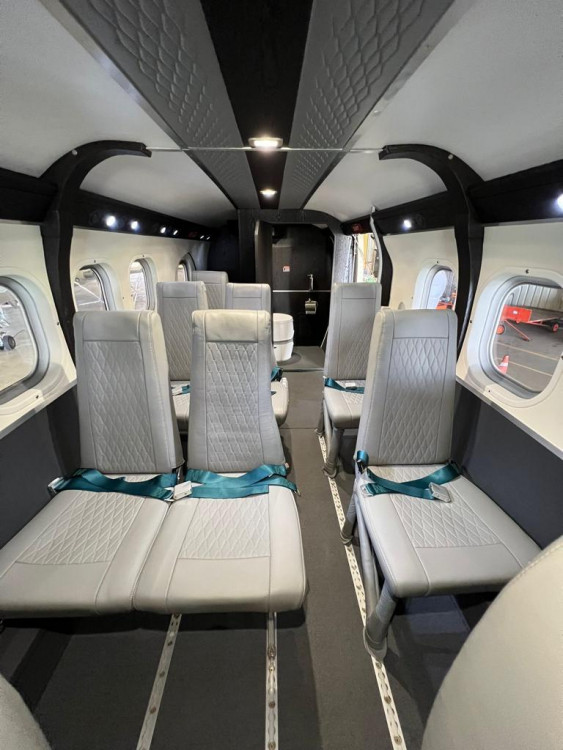

Mid Cabin Configuration: Six single forward-facing bench seats
Aft Cabin Configuration: One single forward-facing bench seat
• Premium Diamond-stitched Leather Upholstery in Light Grey with Teal Seatbelts

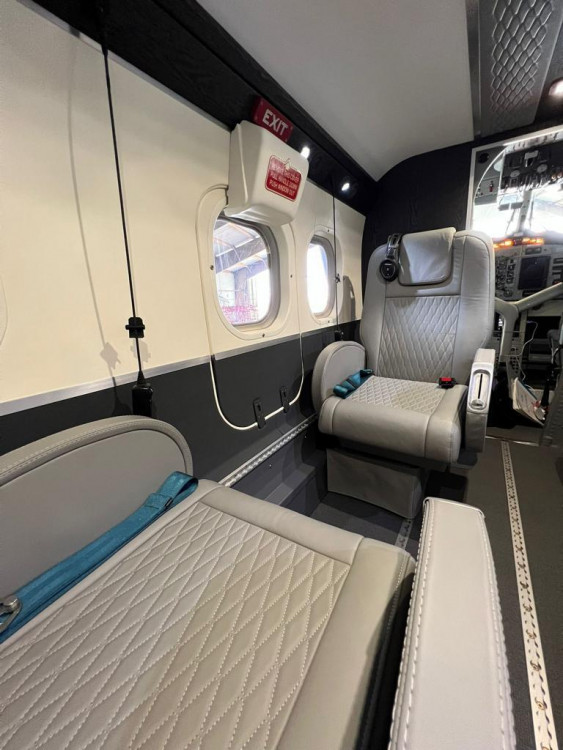

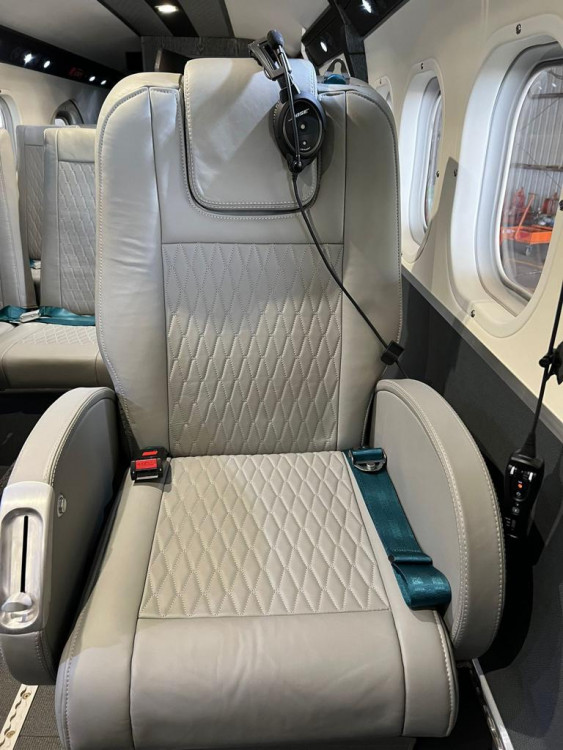

• Reclining Club Seats with Adjustable Armrests, and Dedicated Headset Mounts with Bose Noise Canceling Headsets
• Durable and Reinforced Flat Flooring with Integrated Seat Track System for Flexible Cabin Reconfiguration
• Cabin Seat Rail System Allows for Quick Reconfiguration

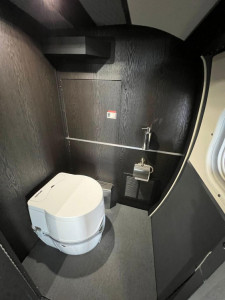

• Viking Toilet Cubicle with Thetford Toilet Installed
Cabin Amenities & Features:
• Zee Systems Air Conditioning STC SA 4622SW
• New Rocky Mountain Air Crew Oxygen System STC
• Viking T5 Indication System STC
• Benz Torque & Oil Pressure Indication System STC
• Overhead Air Vents and Personal Lighting with Wood-grain Style Panel Finish
• Seat Pockets and Under-seat Storage Compartments
Mid Cabin Configuration: Six single forward-facing bench seats
Aft Cabin Configuration: One single forward-facing bench seat
• Premium Diamond-stitched Leather Upholstery in Light Grey with Teal Seatbelts
• Reclining Club Seats with Adjustable Armrests, and Dedicated Headset Mounts with Bose Noise Canceling Headsets
• Durable and Reinforced Flat Flooring with Integrated Seat Track System for Flexible Cabin Reconfiguration
• Cabin Seat Rail System Allows for Quick Reconfiguration
• Viking Toilet Cubicle with Thetford Toilet Installed
Cabin Amenities & Features:
• Zee Systems Air Conditioning STC SA 4622SW
• New Rocky Mountain Air Crew Oxygen System STC
• Viking T5 Indication System STC
• Benz Torque & Oil Pressure Indication System STC
• Overhead Air Vents and Personal Lighting with Wood-grain Style Panel Finish
• Seat Pockets and Under-seat Storage Compartments
Exterior
Base Paint Colors:
Matte Grey
